Description
- Height U:Â 27U
- Doors (Front/back):Â glass(B)/full steel(A)
- Color:Â black RAL9004
- Load capacity:Â 800 kg
- Total height:Â 1388 mm
- Total width:Â 600 mm
- External depth:Â 800 mm
- Mounting depth:Â 550 mm

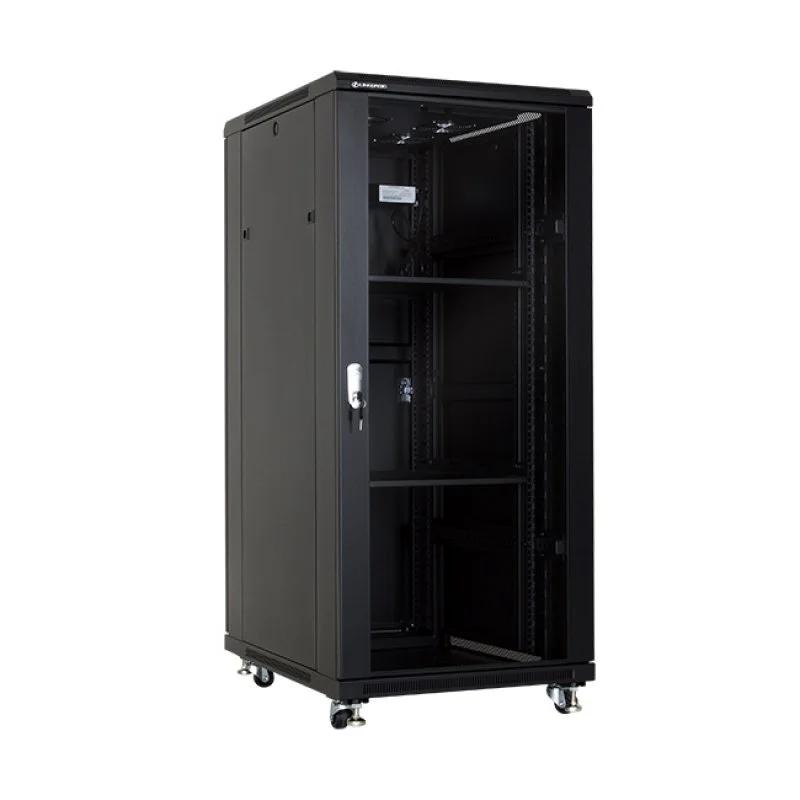

Telecommunication rack cabinet 27U NCB-NA series have 600mm width and is 800mm deep. It is perfect solution for budget-built network installations, broadcasting systems, and automatic controls.
Front door have 5mm thick reinforced glass, and back door are full metal and 1.2mm thick. Both of these have locks. Side panels can have locks as well (available as option).
Robust and solid, combined with aesthetic looks allow any placement, be it server room, small office, or even home.
Full range of accessories are available to expand installation.
Cabinet color is black RAL9004
FEATURES:
- Side doors mounted on latches with a lock assembly option
- A rack rail indicating the amount of units (U)
- Adjustable feet and transport wheels of high durability
- Two cable ducts – ceiling and floor
- A frame with a load capacity of 800kg
- Cold-rolled steel
- Frame thickness: 1.2 mm
- Mounting rail thickness: 2.0 mm
- Side panel thickness: 1.2 mm
- Protection class IP2
- Surface finish: degreasing, etching, phosphating, powder coating
- Protection against rust, oxidation, scratches,
- corrosion Front door – glass
- Full steel back doors
- Available in black RAL9004
- Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
- Compatible with metric ETSI and 19-inch international standards
Specifications:
| Nominal height | 27U |
|---|---|
| Total outer height | 1388mm |
| Outer width | 600mm |
| Outer depth | 800mm |
| Mounting depth | 550mm |
| Colour | Black RAL9004 |
| Maximum load capacity | 800kg |
| Protection class | IP20 |
| Front doors | Glass with lock |
| Back doors | Full steel with lock |
| Side panels | Full steel dismounted on latches with a lock assembly option |
| Cable ducts | 2 pcs – in the ceiling and floor |
| Cable organizer | No |
| Assembly kit | 20 pcs |
| Frame thickness | 1.2mm |
| Mounting rail thickness | 2.0mm |
| Door thickness (steel) | 1.2mm |
| Glass thickness | 5.0mm |
| Side panel thickness | 1.2mm |
| Base thickness | 1.2mm |
| Cover thickness | 1.2mm |
| Additional information | – Adjustable feet and transport wheels of high durability – Cold-rolled steel – Surface finish: degreasing, etching, phosphating, powder coating – Protection against rust, oxidation, scratches, corrosion – Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards – Compatible with metric ETSI and 19-inch international standards |
