Description

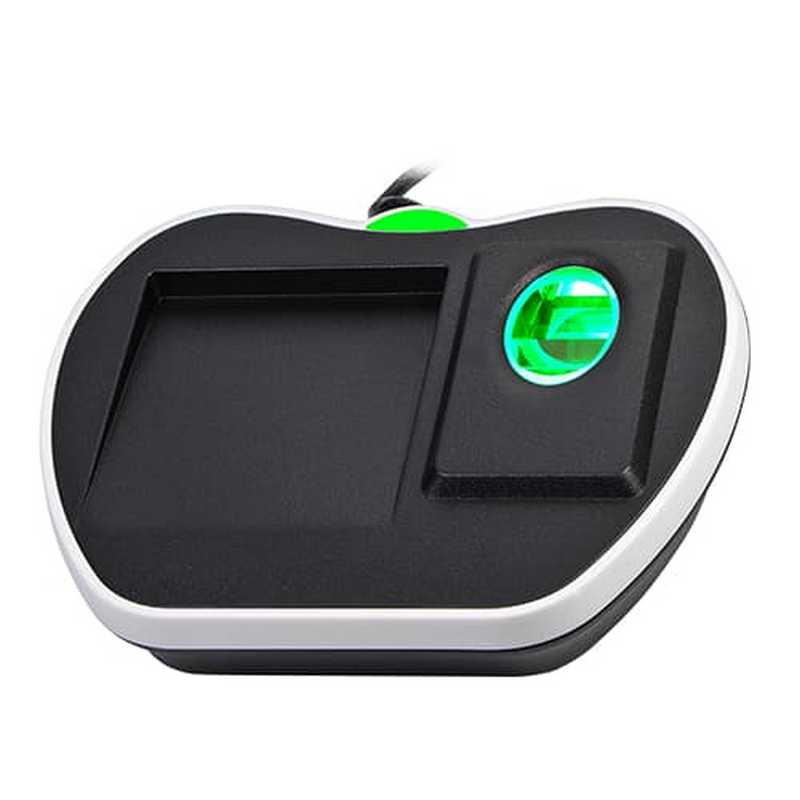

ZKTeco ZK8500R is a USB fingerprint scanner and card issue device that provides a simple and efficient way to register user fingerprints and card numbers with ZKTeco Software. This device can capture fingerprint image or read card serial number (ID/Mifare) directly and upload to the system by USB interface.
ZK8500R would save money as it can work as ZK4500+CR10E+CR10M, and also can save time, especially when a high volume of users will be using ZKTeco systems on site.
Features:
â—†Card issue and enroll user fngerprint
â—†Read Mifare card and ID card number
â—†High-performance optical fngerprint sensor
â—†High quality industrial-class ABS plastic material
â—†LED indicates the status of the device
â—†Available SDK for further development
Specifications:
| Model Name |
ZK8500R |
| Material |
Optical |
| CPU |
120MHz DSP |
| Flash |
16 KB |
| SoC |
RTOS |
| Image Quality |
0.3 megapixels CMOS |
| Sunlight Operation |
White filed, General Sunlight |
| Water Splash |
YES |
| Card Reader |
125KHz EM & 13.56MHz Mifare |
| Operating System |
Windows2000/XP/2003/Vista/7/8(32/64bit) |
| LED |
Green |
| Power Voltage |
5V (USB) |
| Power Current |
300mA |
| Communication |
USB 2.0/ USB1.1/ USB1.0 |
| Interface Socket |
USB Type A |
| Image Resolution |
500 dpi |
| Effective Collecting Area |
13.24 * 15.7 mm |
| Collecting Area |
15.4*18 mm |
| Image Size |
280*360 pixel |
| Dimension |
124.5 * 102 * 34mm (L*W*H) |
| Gray Level |
256 |
| Weight |
0.27kg |
| Operating Environment |
-20 °C  ~  +50 °C; 90% r.h |
Download Datasheet
