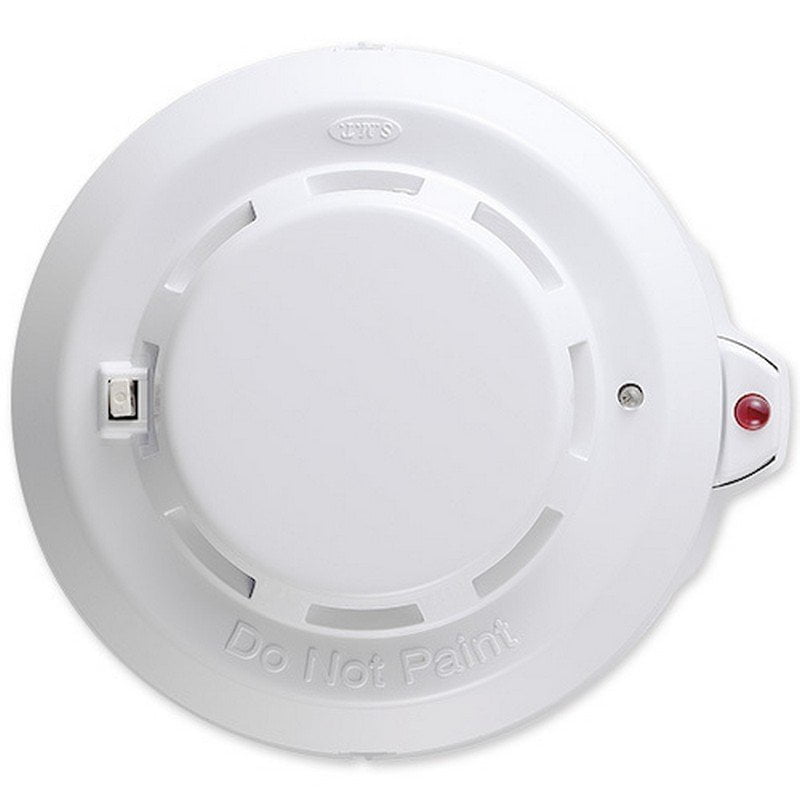

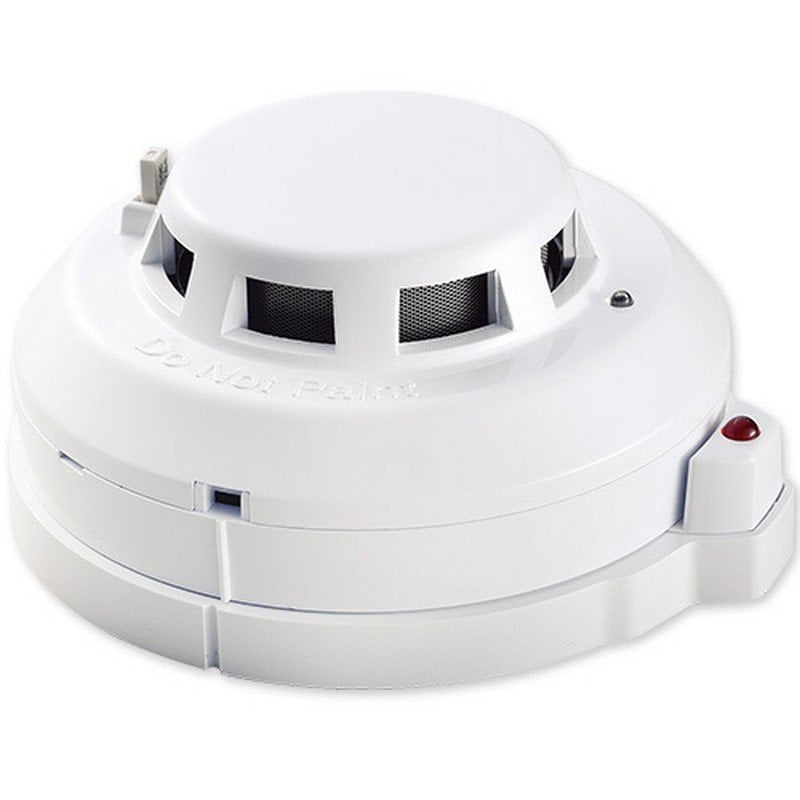

Combination Smoke and Heat Detector AH-9315-4

SKU AH-9315-4 2 Category

Description

Multi-purpose Design: when there is smoke or heat during pre-fire period, field situation will vary due to different environments. This combination design is to ensure that the pre-fire confirmation will not be affected by varying environments.

Characteristics

  • Multi-purpose Design: when there is smoke or heat during pre-fire period, field situation will vary due to different environments. This combination design is to ensure that the pre-fire confirmation will not be affected by varying environments.
  • Smoke gate has a special design to obscure the strong light effectively and allow smoke to come in easily. Water vapor will not gather on the insect guard screen to cause a false alarm.
  • Features an accumulated water discharger to eliminate leakage of water from the water pipes or ceiling which may leak into the detector and cause a false alarm.
  • This detector has passed strict quality control and repetitive testing, hence its quality is stable and highly reliable.
  • Specification

    AH-9315 Combination Smoke and Heat Detector

    ModelAH-9315
    Type2 wire3 wire4 wire
    Alarm ContactN/AN/A0.8A @30V DC, 0.4A @125V AC
    Voltage Range12 ~ 30V DC
    Alarm Current @24V DC 470Ω40mA40mA35mA
    Standby Current @24V DC 470Ω20 ~ 85μA (Loop response under 75μA)
    Sensitivity SettingComply to EN54
    Thermal Setting55°
    Ambient Temperature-10 ~ +55
    MaterialFire-proof plastic
    Dimensions111mm(Dia.) x 50mm(H)
    WeightAbout 170g
    ColorWhite

    Effective Alert Area

    Building HeightArea Covered
    Under 4M150 M2
    4 ~ 20M75 M2
