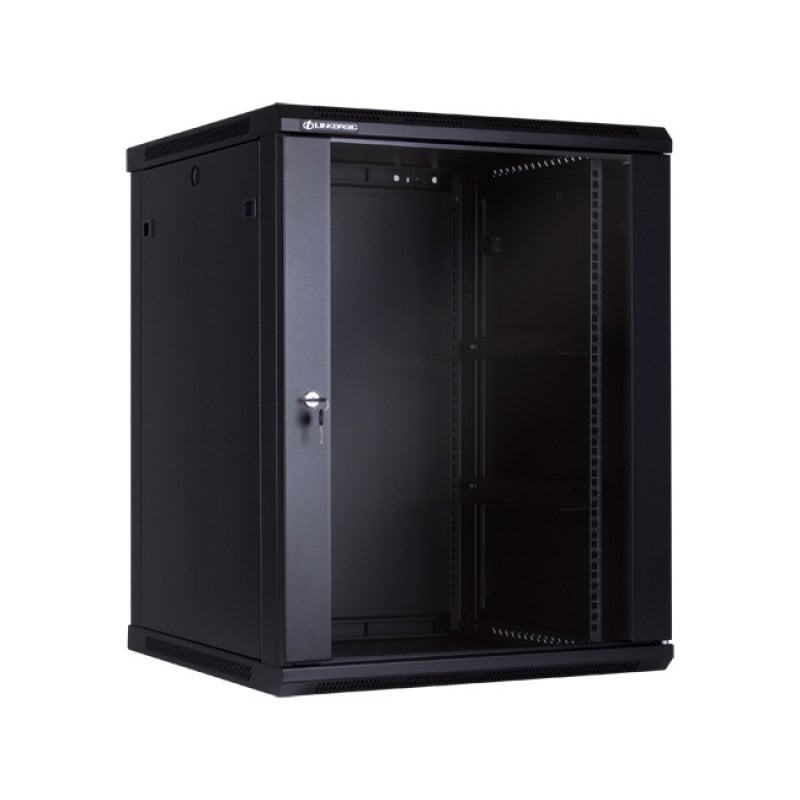

Cabinet 19 INCH 15U 600x600mm

SKU 15U 600x600mm Category
SKU 15U 600x600mm Category

Description

  • Glazed front door with lock, steel hinged rear doors, steel removable sides with latches (possibility of mounting locks)
  • The included accessories
  • AC power extension cord.
  • Two cable glands – on the top and in the bottom
  • Dimensions: 600 mm x 600 mm  (W x D )
  • Max height of installed equipment: 22U





Features:

Reliable structure, static loading capacity:600-800KG (Optional castors and plinth), Glass front door and rear metal door or high density vented front and rear doors, meeting the requirements of mechanical protection and ventilation.
Optional cable entry on top cover and bottom panel. Front, rear door and side panel can be removed facility, the bottom has the function of ventilation and rat-proof.
Varies optional accessories, reliable quality.
Optional opening hole and varies specification upon customers’ special requirements.

  • Protection class IP20
  • Surface finish: degreasing, etching, phosphating, powder coating
  • Protection against rust, oxidation, scratches, corrosion
  • Front door – glass
  • Full steel back doors
  • Available in black RAL9004
  • Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
  • Compatible with metric ETSI and 19-inch international standards



Nominal height 15U
Total outer height 769mm
Outer width 600mm
Outer depth 600mm
Mounting depth 430mm
Colour Black RAL9004
Maximum load capacity 60kg
Protection class IP20
Front doors Glass with a lock
Back doors n/a
Side panels Full steel dismounted on latches with a lock assembly option
Cable ducts 2 pcs – ceiling and floor
Cable organizer No
Assembly kit 10 pcs.
Frame thickness 1.2mm
Mounting rail thickness 1.5mm
Door thickness (steel) 1.2mm
Glass thickness 5.0mm
Side panel thickness 1.2mm
Base thickness 1.2mm
Cover thickness 1.2mm
Additional information – Cold-rolled steel
– Surface finish: degreasing, etching, phosphating, powder coating
– Protection against rust, oxidation, scratches, corrosion
– Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
– Compatible with metric ETSI and 19-inch international standards
