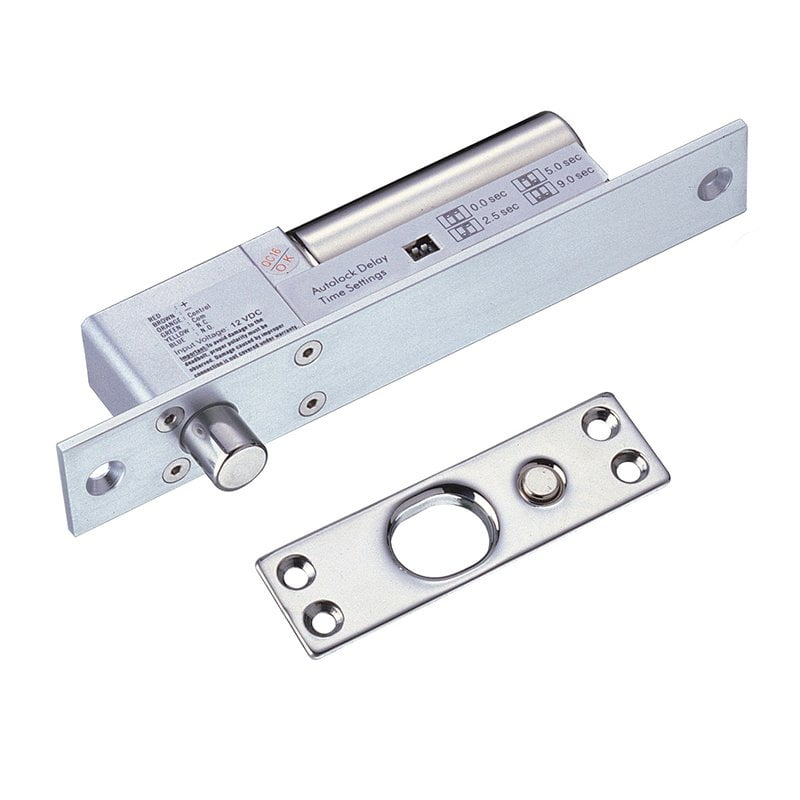

Dead Bolt Lock (Electronic Lock) SL-100B

Description

SL-100B Door position detection and bolt

• position (N.C. & N.O.) output points
• Power Supply: DC12V
• Without relock function

Specification:

• Built-in door open or door close state detection output point (250mA: N.C./ N.O.).
• Special wearable design. Mechanic life of more than 1,000,000 times.
• Fail-safe type and MOV surge protection.
• Micro computer door position detection and current control to prevent error action and lower the lock’s temperature.
• Stainless steel bolt is able to sustain more than 1000 kg of shear force.
• Suitable for all types of 180° door.
• Door lock delay time: 0/ 2.5/ 5/ 9 seconds available to set.
• Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.
• Operation temperature: 0~90℃ ; Humidity: 85%Rh max.
• Dimensions:
  Body: 200mm(L) x 32mm(W) x 42mm(D)
  Strike plate : 90mm(L) x 26mm(W) x 2.5mm(D)
  Bolt : 16mm(Throw) x 15.5mm(Diameter)
• Weight:860g
• Certification: CE
