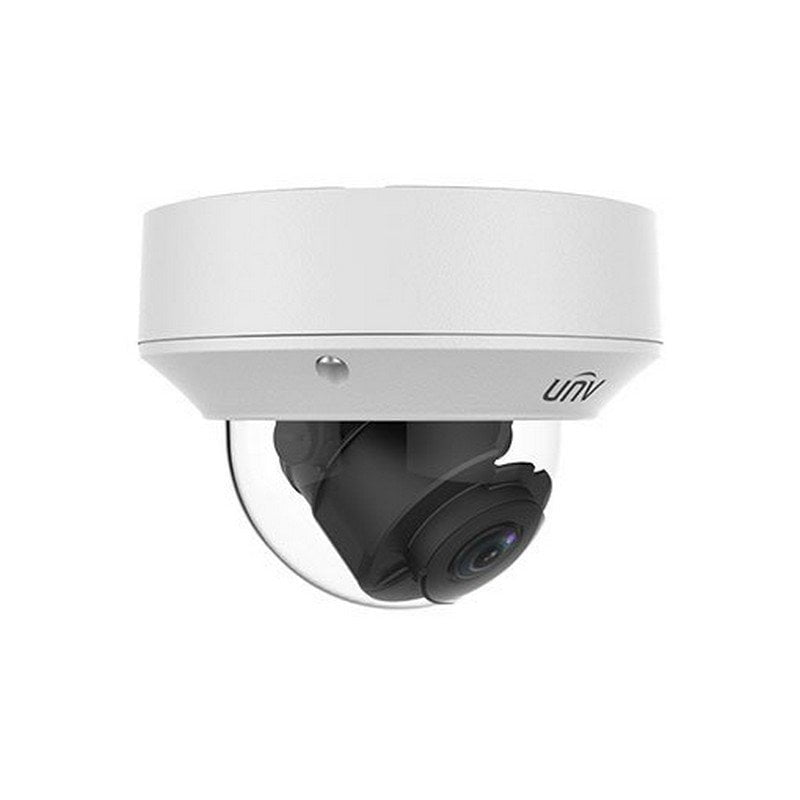

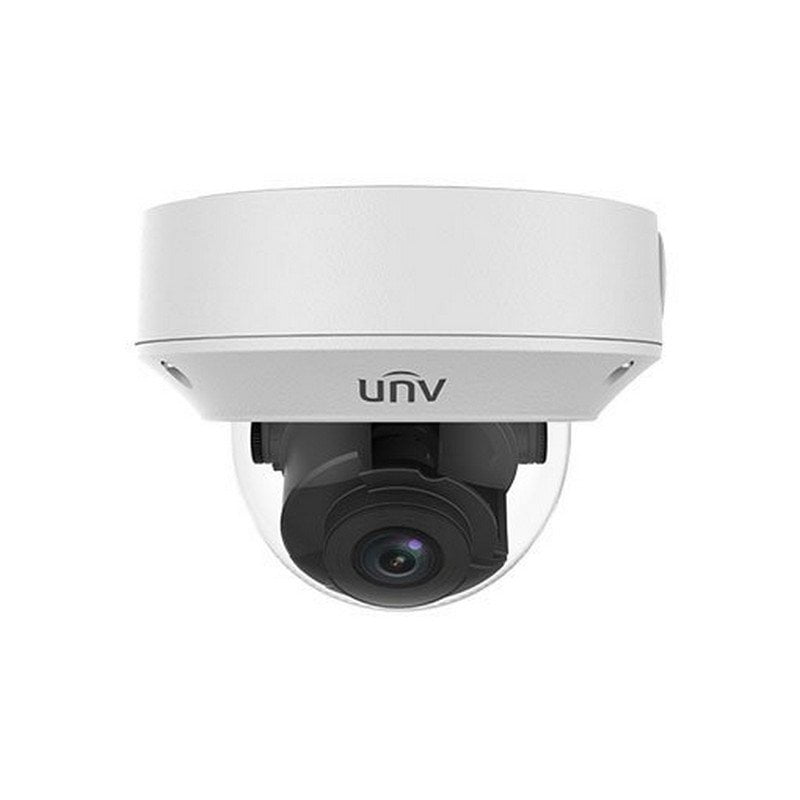

4MP WDR VF Vandal-resistant IR Dome Network Camera

$279

SKU IPC3234SR-DV Category
Free Delivery For Giving A 5 Stars Review!
SKU IPC3234SR-DV Category

$279

Free Delivery For Giving A 5 Stars Review!

Description

• 1/3″,progressive scan,CMOS
• Up to 2592×1520 resolution,20fps
• 2.8~12 mm
• Smart IR, up to 30m IR distance
• 2D/3D DNR, ROI, 9:16 corridor mode
• Ultra 265,H.265,ONVIF
• DC12V,PoE.Wide voltage range of ±25%
• IP67
• IK10

IPC3234SR-DV
Camera
Sensor1/3″, 4.0 megapixel, progressive scan, CMOS
Lens2.8 ~ [email protected]
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.86325.212.66.3
122701085427
Angle of View (H)91.0° ~ 27°
Angle of View (V)54.4° ~ 13.7°
Angle of View (O)118.3° ~ 33.2°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.005Lux (F1.4, AGC ON)
0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
S/N>55dB
IR RangeUp to 30m (98ft) IR range
wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingSupport
HLCSupport
BLCSupport
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/OAudio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75Ω; amplitude 1V [p-p]
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.2W
Dimensions (Ø x H)Φ148 x 111.3mm (Ø5.8” x 4.4”)
Net Weight0.92kg (2.0lb)
MaterialMetal + Plastic
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection6KV
Ingress ProtectionIP67
Vandal ResistantIK10
Reset ButtonSupported

Datasheet of IPC3234SR-DV

IPC3200 Series-Network Fixed Dome Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

Network Cameras User Manual-V2.08
