Description
The JABLOTRON JA-106KR Control panel sold in Lebanon by Smart Security Y.C.C is the best device to help you keep your home and business safe.
Furthermore, you do not have to worry whenever you are out of the house or during your sleep. In addition, it is wireless, so you can easily connect it to JABLOTRON devices without installing any cables.
Moreover, it allows other people you trust to have access to it. Also, in the event of a break-in, the device will automatically notify you via a text message and voice report to up to eight users.
Extended JABLOTRON 100+ control panel. It is designed to protect large buildings, offices, and businesses. It is equipped with a JA-111R module. Installation only by trained technicians with a valid Jablotron certificate.

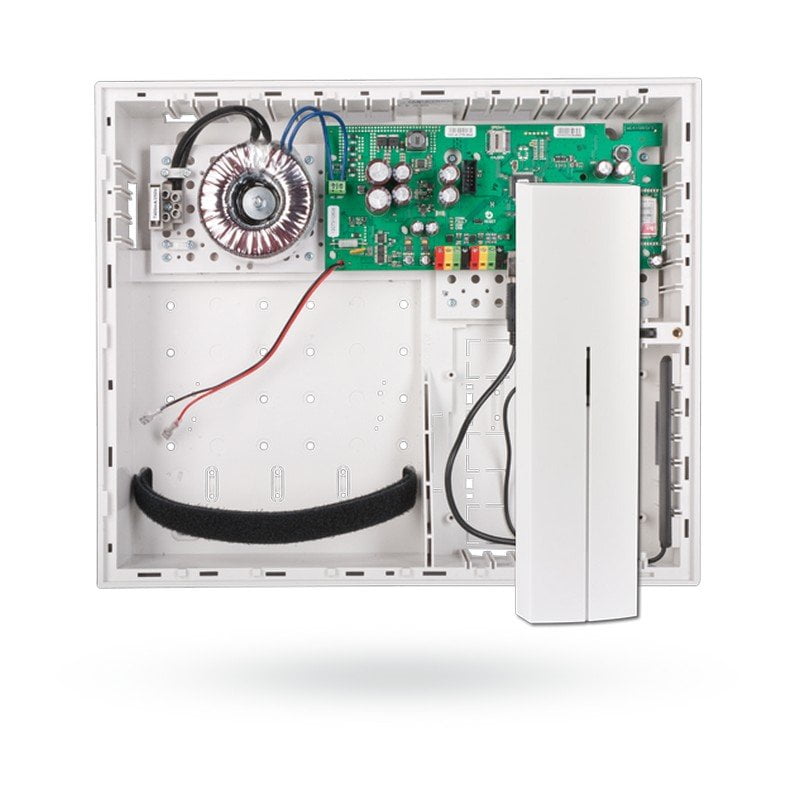

JA-106KR Control panel with built-in GSM/GPRS/ LAN communicator and radio module
It also offers a flexible solution to protect residential complexes, office buildings, and businesses that need a system with many sections. The desired settings and size of the system are programmed via F-link software.
Features of the JABLOTRON JA-106KR:
- up to 120 bus or wireless zones
- up to 300 user codes
- you can have up to 15 sections
- up to 32 programmable outputs
- 20 independent calendars
- SMS reports from the system to 30 users
- 15Â users have the option to use SMS and voice reports
- 5Â ARCs
- 5 optional protocols to the ARC
The panel has a built-in GSM / GPRS / LAN Messenger, which allows voice, SMS or GPRS communication with end users or ARC centers. It is equipped with a 1 GB memory card for storing event data, voice messages, storing images, etc.
The control panel has:
- two independent bus terminals for connections
- it has 1 connector for a built-in radio module (JA-111R)
- 1 connector for a PSTN communication module (JA-190x)
Technical specifications
Control panel power supply |
~ 230 V/50 Hz, max. 0.2 A, with T400 mA fuse, protection class II | |
|---|---|---|
Back-up battery |
12 V; 7 to 18 Ah | |
Maximum battery charging time |
72 h | |
BUS voltage (red-black) |
12.0 to 13.8 V | |
Max. continuous consumption from the control panel |
1200 mA permanently, valid for each BUS output (2000 mA for 10 minutes) |
|
Max. continuous consumption for backing up 12 hours |
Without GSM communicator | LAN – OFF – 1150 mA LAN – ON – 1105 mA |
| With GSM communicator | LAN – OFF – 1130 mA LAN – ON – 1085 mA |
|
Max. continuous consumption for backing up 24 hours |
Without GSM communicator | LAN – OFF – 550 mA LAN – ON – 505 mA |
| With GSM communicator | LAN – OFF – 530 mA LAN – ON – 485 mA |
|
Max. number of devices |
120 | |
LAN communicator |
Ethernet interface | |
Dimensions |
357 x 297 x 105 mm | |
Weight |
2500 g | |
Reaction to invalid code entry |
Alarm after 10 wrong code entries | |
Event history |
approx. 7 million latest events, incl. date and time | |
Power supply unit |
type A (EN 50131-6) T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC. |
|
2G GSM communicator |
850 / 900 / 1800 / 1900 MHz | |
3G GSM communicator |
2100 MHz | |
Environmental class |
class II, indoor general according to EN 50131-1 | |
Operational temperature range |
-10 °C to +40 °C, relative humidity 75% | |
Classification |
Security grade 2 according to EN 50131-1, EN 50131-3, EN 50131-6, EN 50131-10,
EN 50131-5-3, EN 50136-1, EN 50136-2 |
|
Operating frequency (with the JA-11xR module) |
868.1 MHz | |
Radio emissions |
ETSI EN 300 220-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM) | |
EMC |
EN 50130-4 ed. 2, EN 55022 ed. 3, ETSI EN 301 489-7 | |
Safety |
EN 60950-1 | |
Operational conditions |
ERC REC 70-03, ERC DEC (98) 20 | |
Certification body |
TREZOR TEST: (JA-101K, JA-101K-LAN, JA-106K), ANPI: INCERT T014(A) (JA-101K, JA-106K) | |
Caller’s identification |
ETSI EN 300 089 | |
The JABLOTRON JA-106KR device will provide your home and business with security and peace of mind to sleep soundly during the night.
Our customer service support employees at Smart Security Y.C.C are always ready to help you set up this device for your home and business. Please contact us and don’t hesitate.
