JA-111H TRB Bus module interface for wire detector

$32

SKU JA-111H Category
Free Delivery For Giving A 5 Stars Review!
SKU JA-111H Category

$32

Free Delivery For Giving A 5 Stars Review!

Description

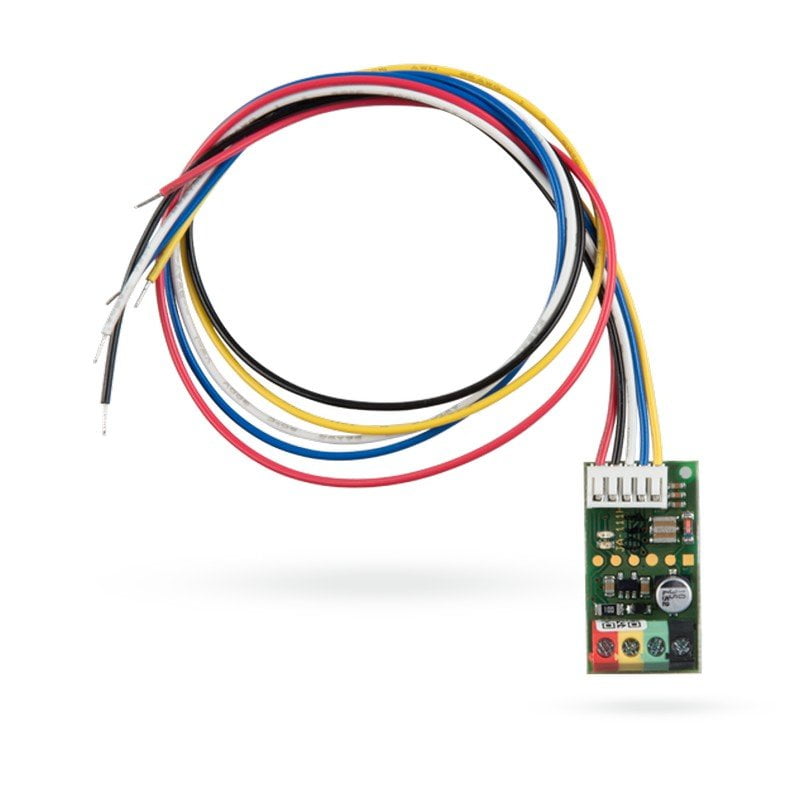

The JA-111H TRB module is designed for the connection of any wired detector (with contact or impulse outputs) to the JABLOTRON 100+ system and provides it with a power supply.

JA-111H TRB Bus module interface for wire detector

This built-in module can be directly integrated into the detector.

  • One input of the module has a fixed Tamper signal, the second input reports an alarm signal and the third input is used to report a fault of a connected device or to report a special “Masking” signal (for detectors with an Anti-masking function).
  • The module can also be used for the connection of a CT-01 roller blind detector.
  • The module can be used to control programmable PG outputs.
  • It supports setting of a minimum activation time for alarm triggering (0.1 s – 300 s).
  • The detector features status as well as impulse activation.
  • The module is a device of the JABLOTRON 100+ system, is addressable and occupies one position in the system.

Technical specifications

Compatible withF-Link 1.4.0 or higher
Powervia the control panel bus 12 V (9 – 15 V)
Backup (idle) mode consumption5 mA + consumption of the control device
Current consumption for cable selection12 mA + consumption of the control device
Maximum acceptable load by the connected control50 mA
Dimensions16 x 30 x 12 mm
Classificationsecurity level 2 / environment class II
In accordance withEN 50131-1, EN 50131-3 (ACE type B)
Operating temperature range-10 to +40 °C
It also meets the requirements ofEN 50130-4, EN 55022

Brand

JABLOTRON

JABLOTRON is the leading provider of intelligent security devices distributed by Smart Security in Lebanon.

It is an international technology company that develops innovative products.

and these products are designed to secure your smart home and office from all expected threats.

They have received many certifications including an ISO 9001, ISO 13485, and an ISO 27001.

So All these certifications are clear evidence that JABLOTRON is at the top of their game regarding quality and assurance.

Moreover, their products are a world bestseller across 73 countries and that shows trust, and satisfaction in their products.

Additionally, they have over 30 years of experience in the field of developing and production of alarm systems.

JABLOTRON products from Smart Security include alarm panels, Bus and wireless motion sensors, bus; and wireless smoke sensors.

Also bus; and wireless magnetic contacts, keypads; and controllers, as well as siren sounders.

That is why Smart Security makes JABLOTRON a choice product when improving your smart home, and office security.

Furthermore, Smart Security provides you with capable staff that are experts at installing, maintaining, and fixing Jablotron products if needed.

In the end, it is your turn to secure your home by buying these products to safeguard yourself or your company.

So call Smart Security now, and have the benefit of a free consultancy from our professional consultants.
