JA-123E BUS outdoor access module with RFID and keypad


Out of stock

SKU JA-123E BUS Category
SKU JA-123E BUS Category


Out of stock


The RFID card reader and keypad can be used for the activation of a PG output by which you can control access to an area by, for example, an electric lock or a security system.

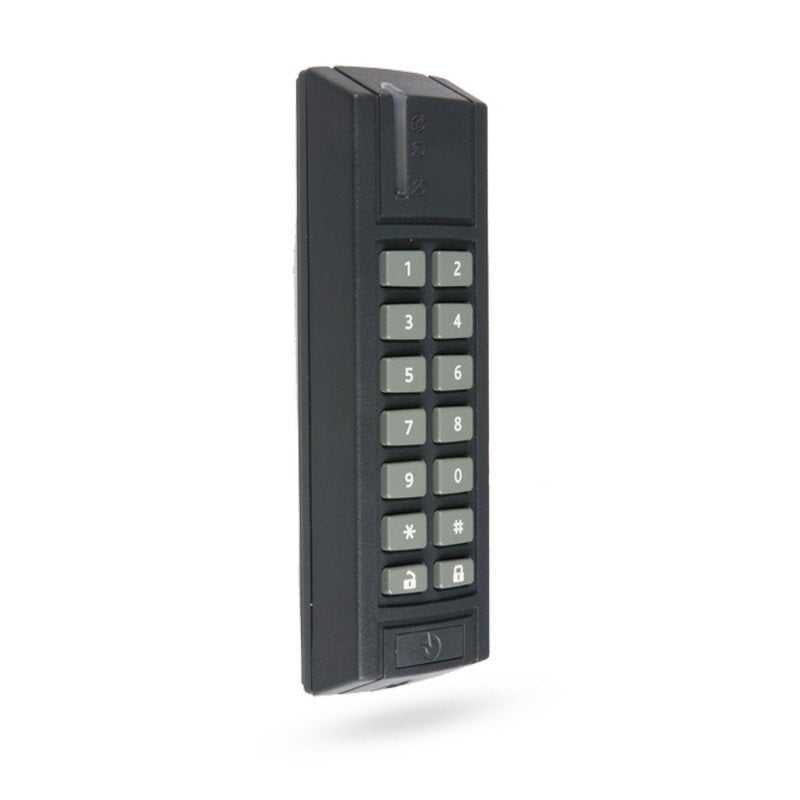

JA-123E BUS outdoor access module with RFID and keypad

The module has a reading part, control segment and optical system for status indication.

Technical specifications

Powerfrom control panel digital bus (9…15 V)
Current consumption in standby mode15 mA
Current consumption for cable selection15 mA
Cover EN 60529IP65
Mechanical strength EN 50102IK08
RFID frequency125 kHz
RFID cardsJABLOTRON 100 and EM Unique 125kHz
Dimensions46 x 151.5 x 22.5 mm
Connection cable length3.0 m
Operating temperature range-25 to +60 °C
Operational environmentEN 50131-1 IV. Outdoor general
ClassificationGrade 2
according toEN 50131-1, EN 50131-3
Also complies withETSI EN 300330, EN 50130-4, EN 55022, EN 60950-1

Additional information


Jablotron (Europe)

Device Type

Price Range




JABLOTRON is the leading provider of intelligent security devices distributed by Smart Security in Lebanon. It is an international technology company that develops innovative products. and these products are designed to secure your smart home and office from all expected threats. They have received many certifications including an ISO 9001, ISO 13485, and an ISO 27001. So All these certifications are clear evidence that JABLOTRON is at the top of their game regarding quality and assurance. Moreover, their products are a world bestseller across 73 countries and that shows trust, and satisfaction in their products. Additionally, they have over 30 years of experience in the field of developing and production of alarm systems. JABLOTRON products from Smart Security include alarm panels, Bus and wireless motion sensors, bus; and wireless smoke sensors. Also bus; and wireless magnetic contacts, keypads; and controllers, as well as siren sounders. That is why Smart Security makes JABLOTRON a choice product when improving your smart home, and office security. Furthermore, Smart Security provides you with capable staff that are experts at installing, maintaining, and fixing Jablotron products if needed. In the end, it is your turn to secure your home by buying these products to safeguard yourself or your company. So call Smart Security now, and have the benefit of a free consultancy from our professional consultants.
