JA-150EM-DIN Wireless module for the impulse output of an electric meter

$162

Out of stock

SKU JA-150EM-DIN Category
Free Delivery For Giving A 5 Stars Review!
SKU JA-150EM-DIN Category

$162

Out of stock

Free Delivery For Giving A 5 Stars Review!

Description

The module for DIN-rail installation is designed to display electric meter readings, which is available for customers via the MyJablotron Web Self-Service.

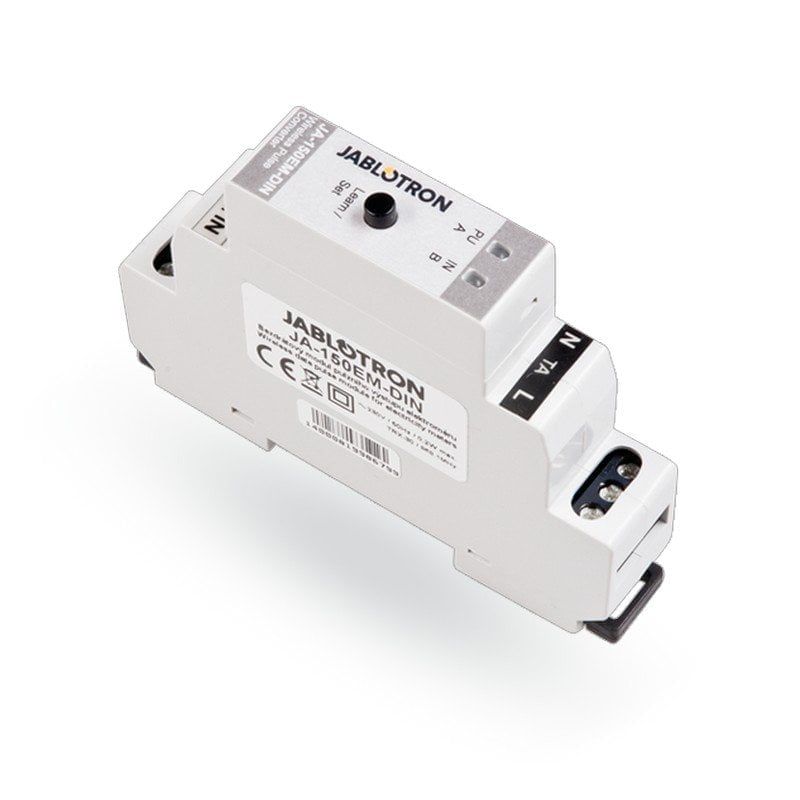

JA-150EM-DIN Wireless module for the impulse output of an electric meter

The module contains a radio transmitter designed for the wireless transfer of information from the electric meter via the control panel to the My Jablotron portal. The impulse converter is directly supplied from the mains and it contains galvanically separated circuits for 4 kV. The converter is designed for connection to a standard impulse output of an SO electric meter. It can distinguish two rates (it can be connected to the rate control line of the load management system). It also has an independent input that can be used e.g. to monitor opening of the switchboard cover.

Technical specifications

Power supply230V/50 Hz, device of protection class II.
Internal power consumptionapprox. 0.1 W
Operating frequency868.1 MHz
Communication rangeapprox. 300 m (line of sight)
IN input:low-voltage, galvanically separated from the mains,
operating voltage 5 V
max. external voltage surge 30V DC
max. connection conductor length 3 m.
PU input:low-voltage, galvanically separated from the mains
operating voltage 5 V
max. external voltage surge 30V DC
max. connection conductor length 3 m.
it is compatible with the impulse output of SO electric meters of class B in accordance with EN 62053-31
TA input:input for the connection of load management control conductor, max. 230 V AC
Dimensions:68 x 96 x 18 mm, 1 DIN module
Working environmentoutdoor, protected, -20 to +60 °C
Ingress protection classfront panel IP40 to EN 60529
The product complies withETSI EN 300220-1, EN 50130-4, EN 55022 and EN 60950-1

Brand

JABLOTRON

JABLOTRON is the leading provider of intelligent security devices distributed by Smart Security in Lebanon.

It is an international technology company that develops innovative products.

and these products are designed to secure your smart home and office from all expected threats.

They have received many certifications including an ISO 9001, ISO 13485, and an ISO 27001.

So All these certifications are clear evidence that JABLOTRON is at the top of their game regarding quality and assurance.

Moreover, their products are a world bestseller across 73 countries and that shows trust, and satisfaction in their products.

Additionally, they have over 30 years of experience in the field of developing and production of alarm systems.

JABLOTRON products from Smart Security include alarm panels, Bus and wireless motion sensors, bus; and wireless smoke sensors.

Also bus; and wireless magnetic contacts, keypads; and controllers, as well as siren sounders.

That is why Smart Security makes JABLOTRON a choice product when improving your smart home, and office security.

Furthermore, Smart Security provides you with capable staff that are experts at installing, maintaining, and fixing Jablotron products if needed.

In the end, it is your turn to secure your home by buying these products to safeguard yourself or your company.

So call Smart Security now, and have the benefit of a free consultancy from our professional consultants.
