Description
Detector is designed for the indication of a breach into a protected area by crossing the IR line.

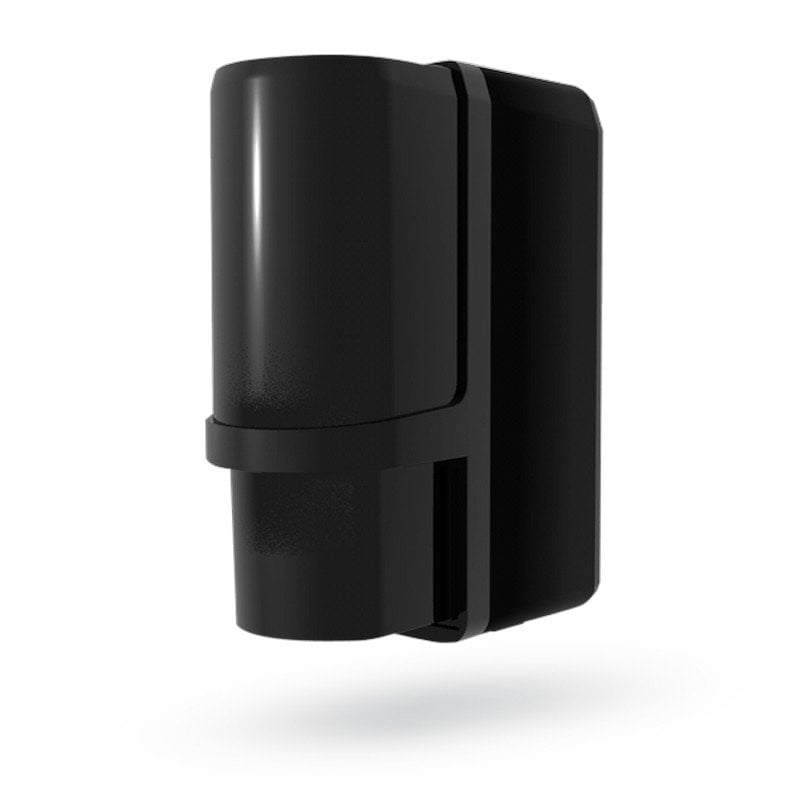

JA-150IR Wireless optical barrier
The JA-150IR optical barrier is designed for the indication of a breach into a protected area by crossing the IR line between the transmitter and the receiver. The barrier is a product by Optex supplemented with transmitters compatible with the JABLOTRON 100+ system, this being both in the transmitting and receiving part of the barrier. The device is equipped with a 2-ray optical part with a high immunity against false alarms and the detection of small animals. The barrier occupies two positions in the system. Both parts of the barrier can send a tamper signal to the control panel. The transmitters regularly perform automatic tests and report their status to the system. The barrier should be installed by a trained technician with a valid certificate issued by an authorised distributor.
Battery is not included.
Technical specifications
| Power | 4 x LSH20 type lithium batteries (3.6 V / 13 Ah) |
|---|---|
| Average battery lifetime | app. 3 years (with 120 s energy saving mode) |
| Communication band | 868.1 MHz, JA-100 protocol |
| RF range | up to 300 m (open area) |
| Optex barrier parameters | |
| Distance (max.) between the barrier units | max. 60 m |
| Barrier installation height | 0.7 – 1.0 m |
| Object motion speed | as set by an installer |
| Detector cover conformance | IP55 |
| Max. relative humidity of the environment | 95 % |
| Weight | 1620 g |
| Operational environment according to EN 50131-1 | IV |
| Operational temperature range | -20 °C to +60 °C |
| Security grade | according to OPTEX |
| Complies with | ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1, EN 50581 |
