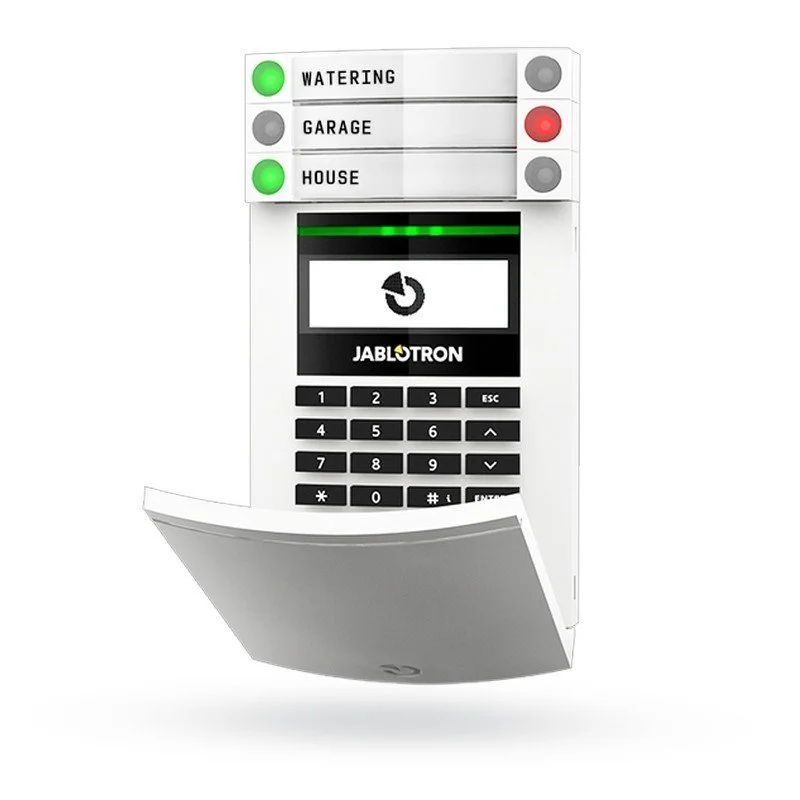

The JA-154E is a two-way wireless access module with an LCD display, a keypad and an RFID reader for security system control. Contains one operating segment and, if needed, can be equipped with up to 20 JA-192E control segments.
JA-154E Wireless access module with display, keypad and RFID
The unit allows simple system control using interlocking segments. It features Smart Radio Wake-up (SRW) which reacts to, for example, a wireless door detector being triggered and effects the automatic termination of sleep mode in a set system during the entrance delay.
The module is powered by alkaline batteries.
The module is addressable and occupies one alarm system position.
|Power||4 x alkaline batteries AA (LR6) 1.5 V|
Please note: Batteries are not included
|Typical life time||1 – 2 year(s) according to the settings|
|Power input from external supply||0.5 W|
|Communication band||868.1 MHz, JABLOTRON protocol|
|Communication range||200 m (open area)|
|RFID frequency||125 kHz|
|Dimensions||102 x 145 x 33 mm|
|According to||EN 50131-1, EN 50131-3, EN 50131-5-3|
|Operational environment||EN 50131-1 II. Indoor general|
|Operating temperature range||-10 to +40 °C|
|Also complies with||ETSI EN 300 330, ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1|
|Can be operated according to||ERC REC 70-03|
