The product is a wireless system device for the JABLOTRON 100+. It is designed to detect human body motion inside buildings. Compared to standard motion detectors from the JABLOTRON 100+ series, this detector is designed for ceiling installation.

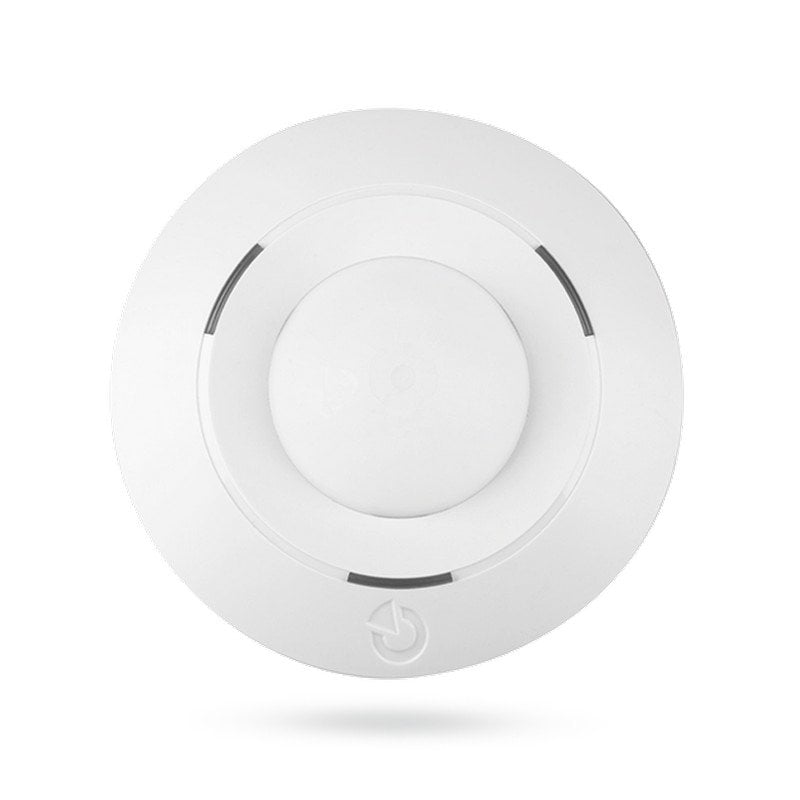

JA-155P Wireless ceiling PIR motion detector
It is installed on the ceiling and its guaranteed detection coverage is 360° with a capture radius of up to 5.5 m at a mounting height of 3.5 m.
The resistance to false alarms is adjustable at two levels
The detector has a pulse response and occupies one position in the system.
The mounting spacer (PLV-P-ST) is a certified accessory for ceiling detectors; these can be used with wireless detectors to separate the antenna from the mounting surface and thus to potentially improve the range.
|Power||2x lithium batteries, type CR123A (3 V/1500 mAh)|
Warning: batteries are not included.
|Low battery voltage||< 2.4 V|
|Communication band||868.1 MHz, JABLOTRON protocol|
|RF range||up to 300 m (open area)|
|Recommended installation height||2.5 – 3.5 m above the ground level|
|Detection coverage||360°/11 m (installation height – 3.5 m)|
|Weight (without batteries)||124 g|
|Classification||security grade 2/II. Indoor general (according to EN 50131-1)|
|Operational environment||indoor general|
|Operational temperature range||-10 °C to +40 °C|
|Average operational humidity||75 % RH, non-condensing|
|Certification body||Trezor Test s.r.o. (no. 3025)|
|Complies with||EN 50131-1 ed. 2+A1+A2, EN 50131-2-2, EN 50131-5-3+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581|
|Can be operated according to||ERC REC 70-03|
