The JA-180PB combines the JA-180P PIR motion sensor with a glass-break sensor in one housing. Each sensor is enrolled to the control panel separately.

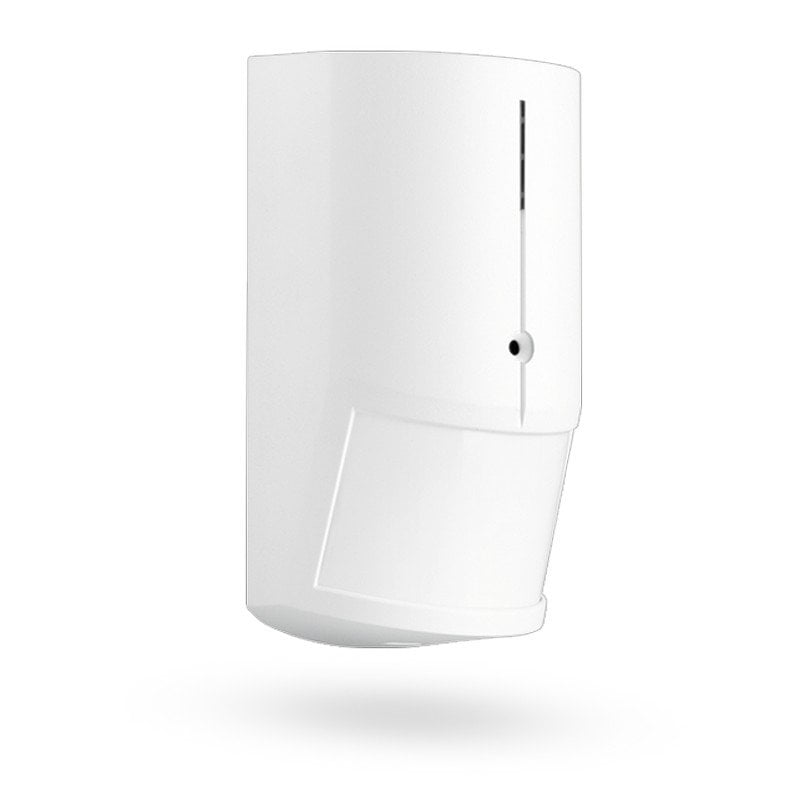

JA-180PB Wireless PIR and glass-break combined detector
The dual technology glass-break sensor reacts to air pressure changes followed by sound analysis to ensure a high immunity to false alarms.
The detection characteristic may be optimized by using alternative lenses JS-7904 LONG HALLWAY, JS 7906 PET or JS-7901 CURTAIN.
It is addressable and occupies two positions in the alarm.
|Power (PIR)||Lithium battery type LS (T) 14500 (3.6 AA / 2.4 Ah)|
Please note: Battery is not included
|Power (GBS)||lithium battery type LS (T) 14250 (3.6V ½ AA / 1.2 Ah)|
|Typical battery life||about 3 years (PIR sleep time 5 min)|
|Communication band||868.1 MHz, Jablotron protocol|
|Communication range||300m (open area)|
|Recommended installation height||2.5 m above floor|
|Detection angle / PIR sensor detection range||120 ° / 12 m (standard lens)|
|Glass break detection range:||9m (glass min. 60 x 60cm)|
|Environment according to EN 50131-1||II. general indoor|
|Operating temperature range||-10 to +40 ° C|
|Dimensions, weight||110 x 60 x 55 mm, 120 g|
|Classification||EN 50131-1, EN 50131-2-2, EN 50131-5-3 grade 2|
|Complies with||ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1|
|Can be operated to||ERC REC 70-03|
