Description
The Jablotron JK-110 is the new basic starter kit including the radio module (R) and LAN only. It offers flexible settings and allows easy wireless protection for small premises, family houses, and small offices.

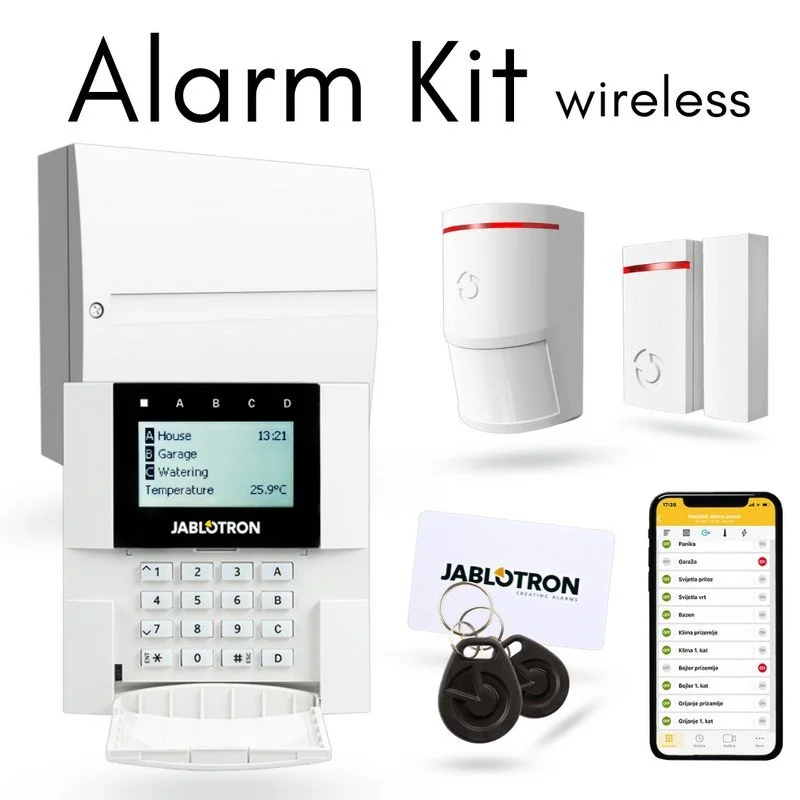

What’s in the kit?

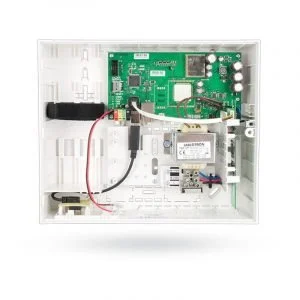

- Â control panel

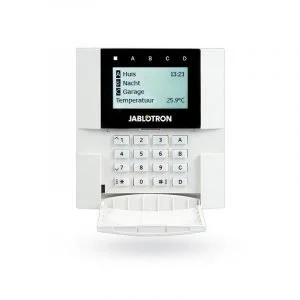

- Â wireless keypad

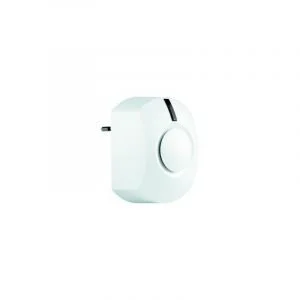

- Â wireless indoor siren
- modern wireless movement detector (PIR)

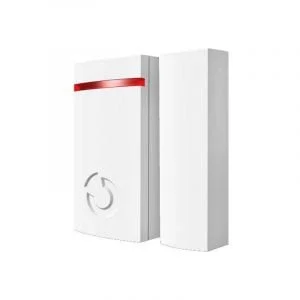

- wireless mini magnet contact

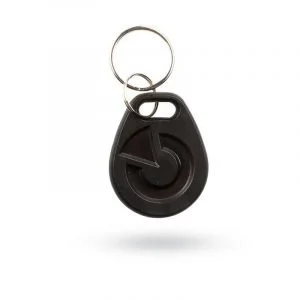

- credit card access tag
- MyJablotron App
- Batteries
This PROFESSIONAL and RELIABLE high-quality Wireless intrusion alarm kit, is ideal for homes, businesses, or factory units as recommended by alarm installers. This kit is one of our best-selling and most efficient intrusion alarm systems across Lebanon, trusted by thousands of retailers, corporates, and household units.
The intrusion alarm kit also includes a VERY LOUD, LIVE bell box with a sleek and modern design. The siren is 115db, and comes along a strobe, back up battery, warning/comfort lights, and is fully tamper-proof.
Attention: The Price of this package does not include the installation.
You’ll be able to set it up yourself following the instructions provided within the setup and installation guide.
The Kit offers
- up to 32 wireless or BUS hardwired zones
- up to 32 user codes
- up to 4 sections
- up to 4 programmable outputs
- 10 independent calendars
- system reports to 8 users by SMS
- 5 users have option of voice and SMS reporting
- 5 ARC settings
- 5 selectable reports to ARC
It has a built-in LAN communicator on the board offering communication by voice or SMS (from the cloud) to end users or to ARC centers. It is equiped with a 1 GB memory card on the board for saving event reports, a voice menu and messages, the storage of pictures and more.
Specifications control panel
| Power source | 230 V / 50 Hz, max. 0.1 A, security class II |
|---|---|
| Backup battery | 12V; 2.9Ah (2.2 to 7Ah) |
| Maximum time needed for battery recharge | 72 h |
| Max. continuous control panel current output | 400 mA |
| Max. continuous current output for 12 hour backup | 125 mA with a 2.6Ah battery |
| Max. number of enrolled devices | 32 |
| LAN communicator | YES |
| Battery | A type (EN 50131-6) |
| QUAD-BAND GSM communicator | 850/900/1800/1900MHz |
| Operating frequency JA-111R | 868.1 MHz ISM band |
| Invalid code-entries exceeded | After 10 incorrect code entries |
| Event memory | approx. 1 million of the latest events including date and time |
| Security rating | 2 according to EN 50131-1, EN 50131-3-6, EN 50131-5-3 |
| Operating environment | Class II indoor general (-10 to +40°C), according to EN 50131-1 |
| Radio transmission conformity | ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511 |
| EMC conformity | EN 50130-4, EN 55022, ETSI EN 301 489-7 |
| Security conformity | EN 60950-1 |
| Can be operated according to | ERC REC 70-03 |
| CLIP protocol (caller ID + SMS) | ETSI EN 300 089 |
Compare the 100KR with the 101KR control panel
| JA-100KR | Comparison control panels of the JA-100 alarm system | JA-101KR |
| 868 MHz | Â Communication protocol radio module (included) | 868 MHz |
| 32 | Number of wireless or BUS hardwired zones | 50 |
| 32 | Number of user codes | 50 |
| 4 | Number of sections | 8 |
| 4 | Â Number of programmable outputs | 16 |
| 10 | Number of independant calenders / timers | 20 |
| 8 | Number of users system reports to by sms | 8 |
| 258 x 214 x 77 mm | Dimensions | 258 x 214 x 77 mm |
| no | Â Build in GSM / GPRS communicator | yes |
| yes | Built in LAN communicator | yes |
| yes | (MyJablotron) App + internet (Web-Self-Service) | yes |
| Private | Use | Private / Small Business |
