JB-110N Bus PG power output module

$81

Out of stock

SKU JB-110N Category
SKU JB-110N Category

$81

Out of stock

Description

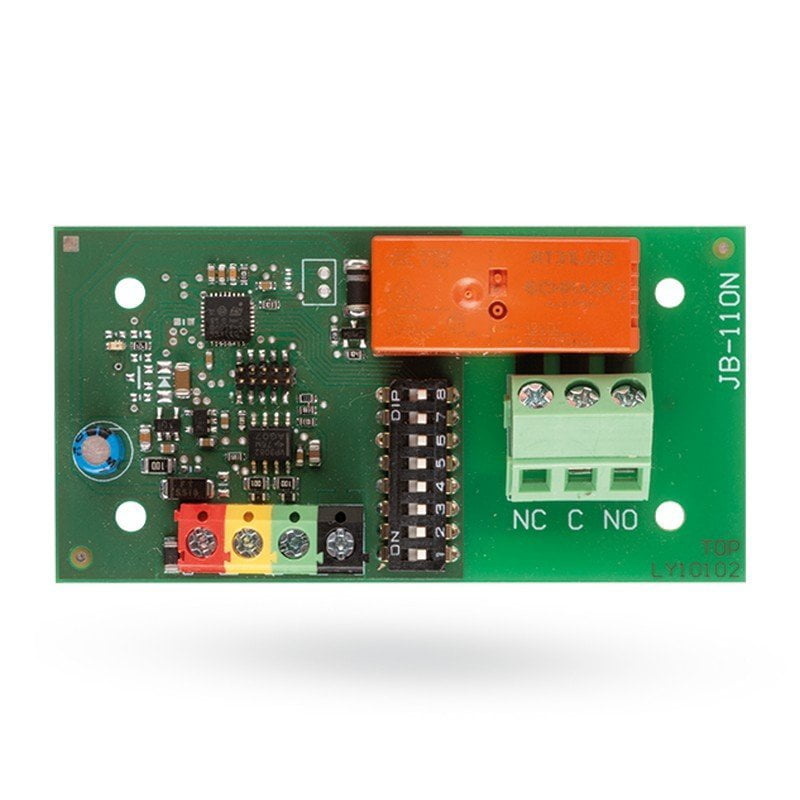

Bus power output module PG. The product is a system device for the JABLOTRON 100+ . It provides a switching contact for the output power relay. It can be used, for example, to control lighting, fans, etc.

JB-110N Bus PG power output module
The module communicates via a bus and is powered by the control panel bus. It can be installed in a JA-19xPL installation box or a control panel box.

Technical specifications:

Power supplyvia the control panel bus 12 V (9 …15 V)
Current consumption during backup (open/closed relay)5 mA/45 mA
Current consumption for cable selection45 mA
Loading capacity of the relay contacts:
Max. switched voltage250 V AC/24V DC
Resistive load (cosφ=1)max. 16 A
Inductive, capacitive load (cosφ=0.4)max. 8 A
Minimum switched DC power0.5 W
Protectionclass II
Dimensions70 x 38 x 20 mm
Classificationlevel 2 in acc. with EN 50131-1, EN 50131-3 only when module is located in a JA-194PL or JA-195PL box
using the JA-111H TRB module
Environment according toEN 50131-1 II. indoor, general
Operation temperature range10 °C to +40 °C
It also meets the requirements ofEN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581
