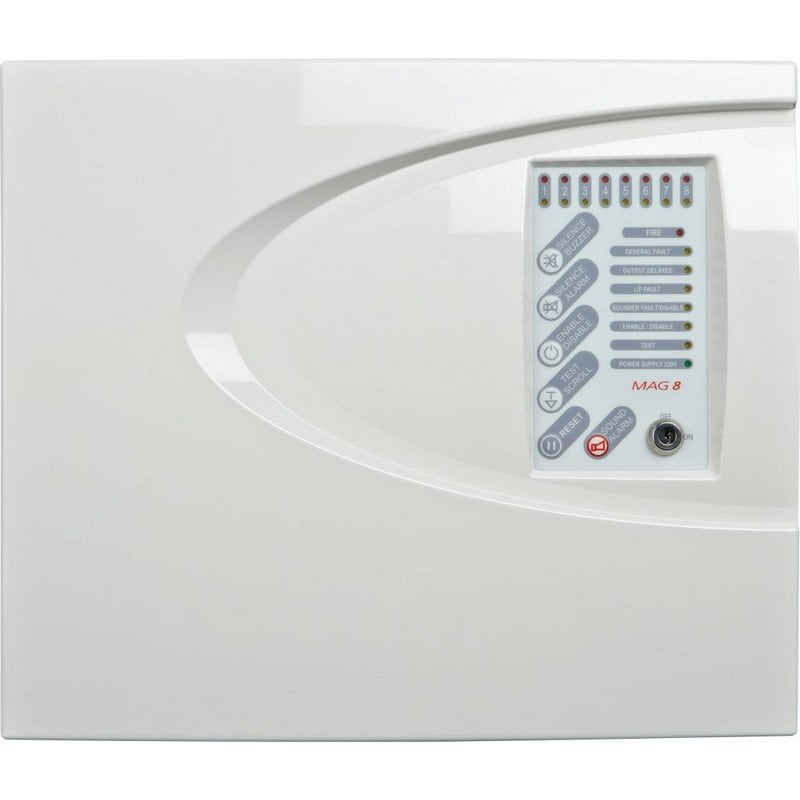

MAG8 is a conventional fire alarm panel certificated to EN54-2/4, providing 8 fixed zones. Up to 20 (32 SensoMAG Series) fire detectors can be connected to every fire zone. Unlimited number of call points can be connected to every of the fire zones.
MAG8 is situated in a plastic box. The panel is easy for installation and maintenance and provides user-friendly daily operation.
The panel is suitable for residential, small and middle office applications with 8 protected areas up to 3000m².
The panel is available in different language versions for the front panel.
8 fully monitored fire zones with up to 32 fire alarm detectors and unlimited number of call points per zone
2 monitored siren outputs – 24V/ 0.5A each
1 “fire” and 1 “fault” relay output
Supports relay expander and LOG module
Active EOL allowing continuous monitoring of inputs
“One man” zone testing
Main Power Supply ~230VAC ± 10%
Max. charging current for the battery 0.3A
Battery high resistance “Ri” < 0.45 Ω
– Max. current (with fully charged battery)
– Min. current (stand-by power supply only)
– Max. current (stand-by power supply only) 0.7A
Auxiliary output 24 VDC/ 0.3A fuse
Back-up Power Supply 1 battery, 12V/ 7Ah
Operating temperature -5°C ÷ +40°C
Weight (without battery) ~2.4kg
Dimensions of the metal box 340x290x100mm
