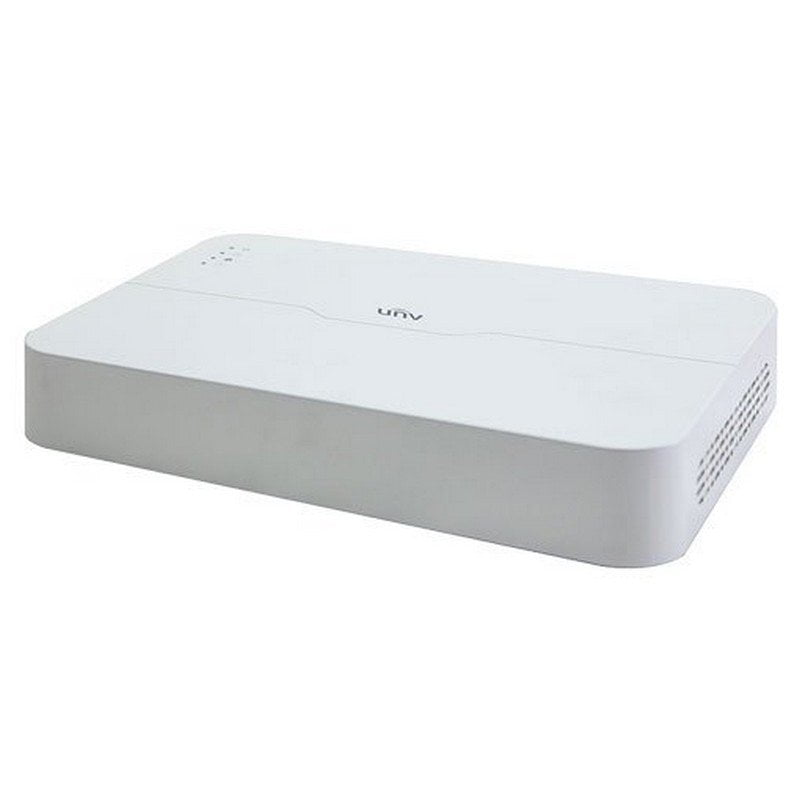

NVR301-04L-P4 Series


SKU NVR301-04L-P4 Category
SKU NVR301-04L-P4 Category



4/8/16-ch 1-SATA NVR
  • • Support Ultra 265/H.265/H.264 video formats
    • 4/8/16-channel input
    • Plug & Play with 4/8 independent PoE network interfaces
    • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
    • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
    • Up to 8 Megapixels resolution recording
    • HDMI and VGA simultaneous output
    • 1 SATA HDD up to 10 TB
    • ANR technology to enhance the storage reliability when the network is disconnected
    • Support cloud upgrade
Video/Audio Input
IP Video Input4-ch8-ch16-ch
Two-way Audio Input1-ch, RCA
Incoming Bandwidth40Mbps60Mbps60Mbps
Outgoing Bandwidth64Mbps64Mbps80Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback4-ch8-ch16-ch
Corridor Mode Screen3/43/4/5/7/93/4/5/7/9/10/12/16
Decoding formatUltra 265, H.265, H.264
Live view/
Capability1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1
Hard Disk
SATA1 SATA interface
Capacityup to 10TB for each disk
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
External Interface
Network Interface1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel:2 x USB2.0
Interface4 independent 100 Mbps PoE network interfaces8 independent 100 Mbps PoE network interfaces
Max PowerMax 30W for single port
Max 54W in total ( 13.5W for each )
Max 30W for single port
Max 108W in total ( 13.5W for each )
Supported StandardIEEE 802.3at, IEEE 802.3af
Power Supply48V DC
Power Consumption: ≤ 8 W( without HDD )
52V DC
Power Consumption: ≤ 8 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)42 × 205 × 205mm ( 1.7″ × 8.1″ × 8.1″ )270mm×205mm × 42mm (10.6″ ×8.1″× 1.7″)
Weight ( without HDD )0.59kg ( 1.3 lb )≤ 0.68 Kg ( 1.50 lb )

Datasheet of NVR301-L-P

Network Video Recorders Quick Guide-V1.04

Network Video Recorders User Manual

Additional information




Device Type


Price Range




Uniview is the pioneer and leader of IP video surveillance and now they are available in Lebanon thanks to Smart Security.

Uniview products include IP cameras, these cameras come in a variety of shapes and resolutions.

The resolutions available are 2 megapixels, 3 megapixels, 4 megapixels, 5 megapixels, and 8 megapixels.

Then there are the Network Video Recorders and these are available in a wide range of models.

When you call Smart security their operators will be more than glad to help you make the best selection for your needs.

Smart Security is the number one provider of Uniview products.

As such Smart Security provides you with the best quality for your buck.

Furthermore, Smart Security provides all of these options, at the best price available on the market.

Smart Security always has your safety in mind, and they always partner with the best companies.

Therefore you can always know that when you call Smart Security that they have your best interest at heart. As such Smart Security does not treat you as a regular client but they treat you like family.

So call Smart Security now, and get in touch with our consultants to benefit from our free consultancy.
