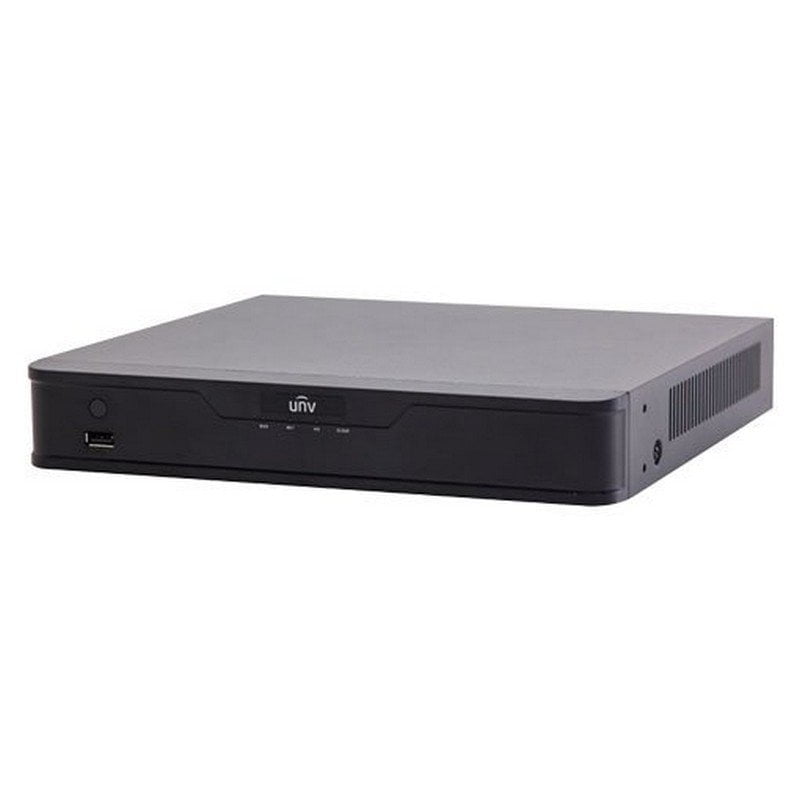

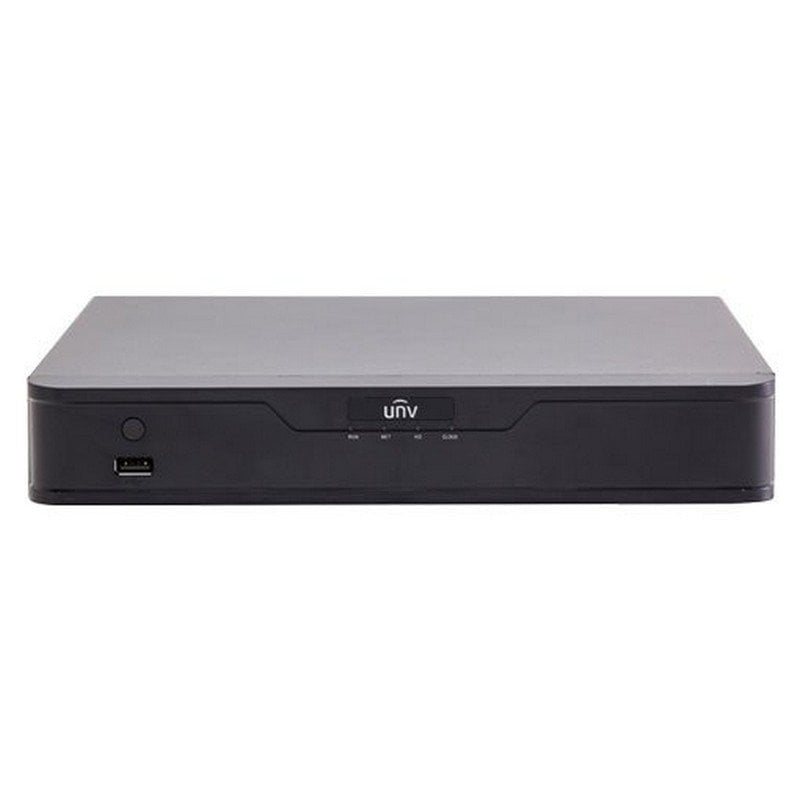

UNIVIEW NVR301-08S 8-CHANNEL 4K-1HDD

$0

Out of stock

SKU NVR301-08S Category
SKU NVR301-08S Category

$0

Out of stock

Description

4/8/ Channel 1 HDD NVR

• Support Ultra 265/H.265/H.264 video formats
• 4/8-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 1 SATA HDDs, up to 10TB for each HDD
• Support cloud upgrade

NVR301-04S NVR301-08S
Video/Audio Input
IP Video Input 4-ch 8-ch
Network
Incoming bandwidth 40Mbps 48Mbps
Outgoing bandwidth 48Mbps 48Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI:
4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output 1-ch, RCA
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback 4-ch 8-ch
Corridor Mode Screen 3/4 3/4/5/7/9
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA 1 SATA interface
Capacity up to 10TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB2.0, Front panel: 1 x USB2.0
General
Power Supply 12V DC
Power Consumption: ≤ 5 W (without HDD)
Working Environment -10°C~+55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 260mm × 240mm ×47mm (10.2″× 9.5″×1.8″)
Weight (without HDD) ≤ 1 Kg (2.2lb)

Datasheet of NVR301-S

Network Video Recorders Quick Guide-V1.04

Network Video Recorders User Manual
