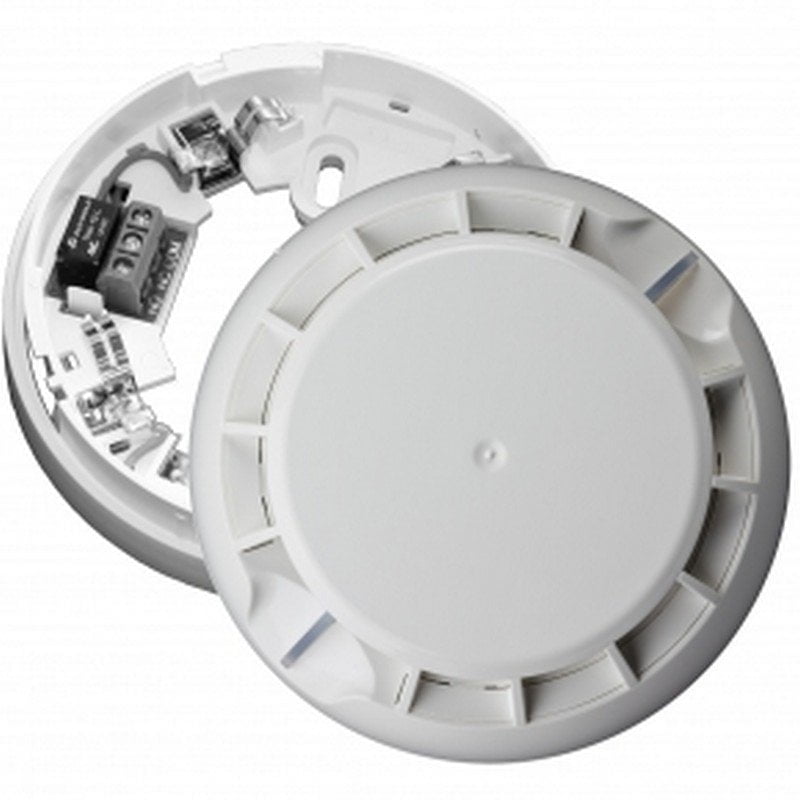

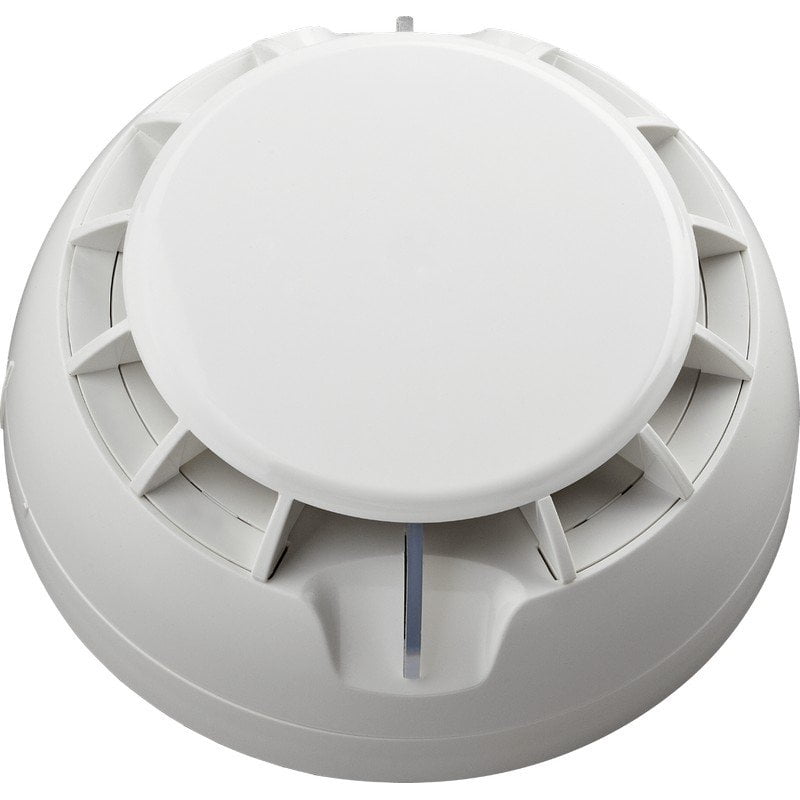

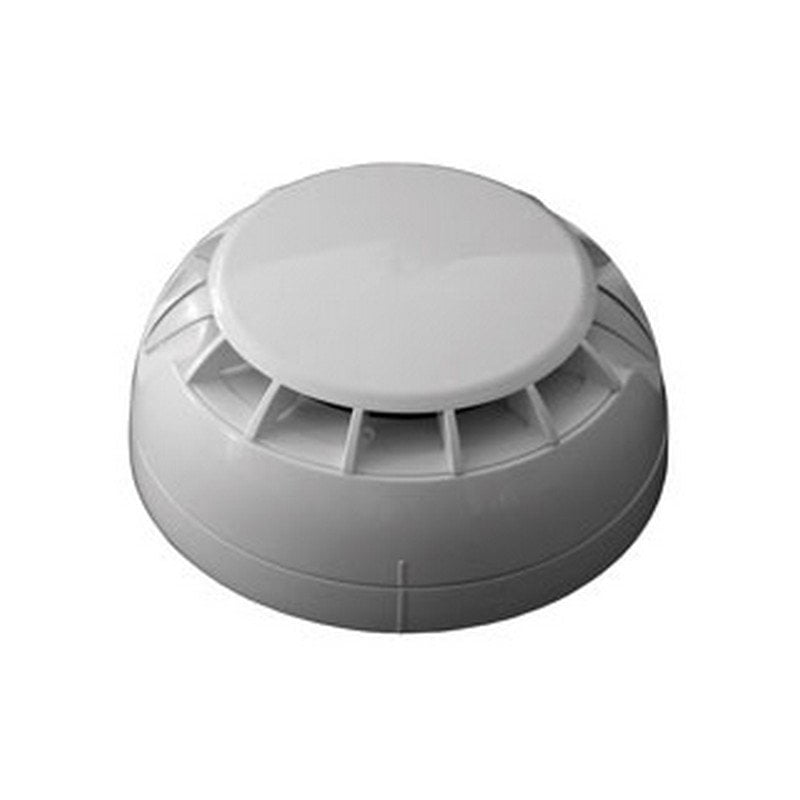

SensoMAG F10B is a fixed temperature detector with digital processing algorithm. The detector is designed to detect temperatures above 75°C (class BS, according to EN54-5).
SensoMAG F10B is suitable for installing in any conventional fire alarm system designed with fire alarm panel with fire alarm threshold between 10mA and 15mA.
SensoMAG F10B is suitable for environments, where sudden large temperature changes are considered as normal, rooms with high concentration of vaporous, exhaust gases, dust, etc.
For example: kitchens, garages, boiler rooms or other places where it is not convenient to install fire alarm optical smoke detectors.
- Detects temperatures over 75°C, class BS
- Digital process algorithm
- Low profile design
- LED indication with 360° visibility
- Sensor status indication on every 8 seconds
- EN54 – 5 certified
|Supply voltage U||9-30 VDC (Nom. 12/24 VDC)|
|Alarm state current||– base type B24 and B24D: 20mA/12-30V;|
– base type B24RD: 33mA/12V, 49mA/ 24V, 57mA/30V
– base type B12: 18mA/9V, 29mA/12V, 32mA/15V
|Class||B/S (according to EN 54-5)|
|Output in alarm state at terminal RI||20mA (max)/-3.3V|
|Degree of protection||IP 30|
|Operational temperature range||-10 / +60°С|
|Relative humidity resistance||(93 ± 3) % at 40°С|
|Dimensions (incl. base)||diameter 102 mm, h 42 mm|
|Weight (incl. base)||160 g|
