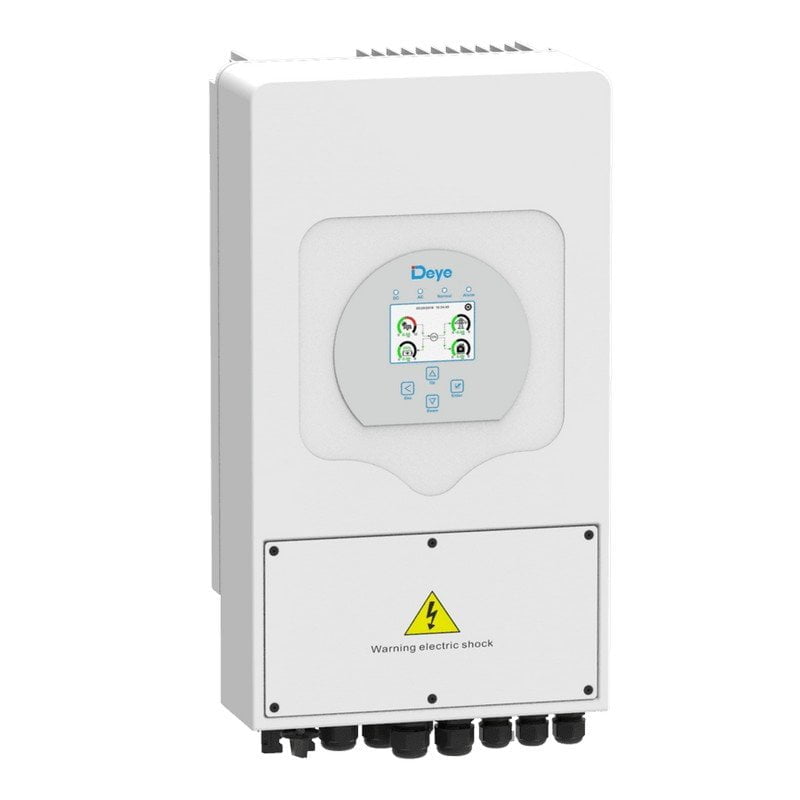

Solar Inverter DEYE 8KW HYBRID

$0

Out of stock

SKU Solar Inverter DEYE 8KW HYBRID Category
SKU Solar Inverter DEYE 8KW HYBRID Category

$0

Out of stock

Description

The Solar Inverter DEYE 8000W HYBRID provided in Lebanon by Smart Security is the best way to have 24 hours electricity all around the year.

Moreover, installing a solar inverter will allow you to safely have electricity in your home all day long all year round.

Additionally, you will not have to worry if any problem occurs in the power company because the solar panels will charge the tubular batteries and give you a constant supply of electricity.

Also, worrying about diesel and gasoline is a thing of the past with the solar system that we provide you in Lebanon.

Features of the solar inverter DEYE 8KW HYBRID:

  • 48V low voltage battery, transformer isolation design
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 240A
  • Max.16pcs parallel
  • DC couple and AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • Supports three phase unbalanced output
  • Unique Smart Load application and Grid peak shaving function
Model SUN-5K-SG01LP1-US SUN-6K-SG01LP1-US SUN-7.6K-SG01LP1-US/EU SUN-8K-SG01LP1-US/EU

Battery Input Data

Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40~60V
Max. Charging Current (A) 120A 135A 190A 190A
Max. Discharging Current (A) 120A 135A 190A 190A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Yes
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 6500W 7800W 9880W 10400W
Rated PV Input Voltage (V) 370V(125V~500V)
Start-up Voltage (V) 125V
MPPT Range (V) 150V-425V
Full Load DC Voltage Range (V) 300V-425V 200V-425V
PV Input Current (A) 13A+13A 26A+13A 26A+26A
Max. PV ISC (A) 22A+22A 44A+22A 44A+44A
Number of MPPT Trackers 2
Number of Strings per MPPT Tracker 1 2+1 2

AC Output Data

Rated AC Output and UPS Power (W) 5000W 6000W 7600W 8000W
Max. AC Output Power (W) 5500W 6600W 8360W 8800W
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 20.8/24 25/28.8 31.7/36.5 34.5/33 33.3/38.5 36.4/34.8
Max. AC Current (A) 22.9/26.4 27.5/31.7 34.8/40.2 38/36.3 36.7/42.3 40/38.3
Max. Continuous AC Passthrough (A) 50A
Output Frequency and Voltage 50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase),

L/N/PE 220/230Vac (single phase)
Grid Type Split phase; 2/3 phase; Single Phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)

Efficiency

Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
PV Input Lightning Protection Integrated
Anti-islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection Integrated
Surge protection DC Type II / AC Type Ⅲ
Certifications and Standards
Grid Regulation CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -40~60℃, >45℃ Derating
Cooling Smart cooling
Noise (dB) <30 dB
Communication with BMS RS485; CAN
Weight (kg) 32
Size (mm) 420W×670H×233D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
