Uniview Wifi Kit 2 MP

$250

SKU unv-wifi-kit Categories ,
Free Delivery For Giving A 5 Stars Review!
SKU unv-wifi-kit Categories ,

$250

Free Delivery For Giving A 5 Stars Review!

Description

This Package Includes:

1 × NVR

4 × Wifi Camera 2 MP

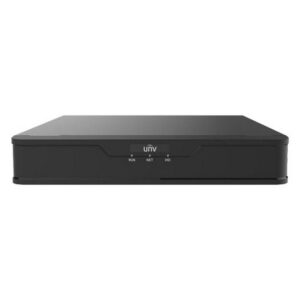

Model Of NVRNVR301-04LB-W
Video/Audio Input
IP Video Input4-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth40Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
Recording Resolution1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback4-ch
Corridor Mode Screen3/4
Decoding
Decoding formatUltra 265/H.265/H.264
Live view/ Playback1080p/960p/720p/D1/2CIF/CIF
Capability4 x [email protected], 4 x [email protected]
Hard Disk
SATA1 SATA interface
CapacityUp to 6TB for each HDD
External Interface
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel:2 x USB2.0
Wi-Fi
Frequency2.4GHz
Transmission Rate150Mbps
Wireless StandardsIEEE 802.11b/g/n
Wireless Range160m(open environment)
General
Power Supply12V DC
Power Consumption: ≤ 9 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)205mm ×228mm ×47mm (8.1″ × 9.0″×1.9″)
Weight ( without HDD )≤ 0.98Kg(2.16lb)
Model Of CameraIPC322SR3-VSF28W-D
Camera
Sensor1/2.7″, progressive scan , 2.0 megapixel, CMOS
Lens2.8 [email protected]
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm4216.88.44.2
Angle of View (H)112.7°
Angle of View (V)60.1°
Angle of View (O)146.5°
Adjustment anglePan: 0°~360°Tilt: 0°~68°Rotate: 0°~360°
ShutterAuto/Manual, 1~1/100000 s
Min. IlluminationColour: 0.02 Lux (F2.0, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
Frame RateMain Stream:2MP (1920×1080): Max. 20 fps;
Sub Stream: 720P (1280×720): Max. 20 fps;
Third Stream: 4CIF (704×576): Max. 20 fps
HLCSupported
BLCSupported
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication,
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP
Compatible IntegrationONVIF(Profile S, Profile G, Profile T), API
Wi-Fi
Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz ~ 2.4835 GHz
Channel Bandwidth20 MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power802.11b: 17±1.5dBm @11Mbps
802.11g: 14±1.5dBm @ 54Mbps
802.11n: 12.5±1.5dBm
Receive Sensitivity802.11b: -90dBm @ 11Mbps (Typical)
802.11g: -75dBm @ 54Mpbs (Typical)
802.11n: -74dBm (Typical)
Transmission Rate802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC(+/-25%)
Power consumption: Max 5.5W
Dimensions (Ø x H)Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight0.45 kg (0.99 lb)
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:10%~90% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistentIK10



Brand

UNIVIEW

Uniview is the pioneer and leader of IP video surveillance and now they are available in Lebanon thanks to Smart Security.

Uniview products include IP cameras, these cameras come in a variety of shapes and resolutions.

The resolutions available are 2 megapixels, 3 megapixels, 4 megapixels, 5 megapixels, and 8 megapixels.

Then there are the Network Video Recorders and these are available in a wide range of models.

When you call Smart security their operators will be more than glad to help you make the best selection for your needs.

Smart Security is the number one provider of Uniview products.

As such Smart Security provides you with the best quality for your buck.

Furthermore, Smart Security provides all of these options, at the best price available on the market.

Smart Security always has your safety in mind, and they always partner with the best companies.

Therefore you can always know that when you call Smart Security that they have your best interest at heart.

As such Smart Security does not treat you as a regular client but they treat you like family.

So call Smart Security now, and get in touch with our consultants to benefit from our free consultancy.
