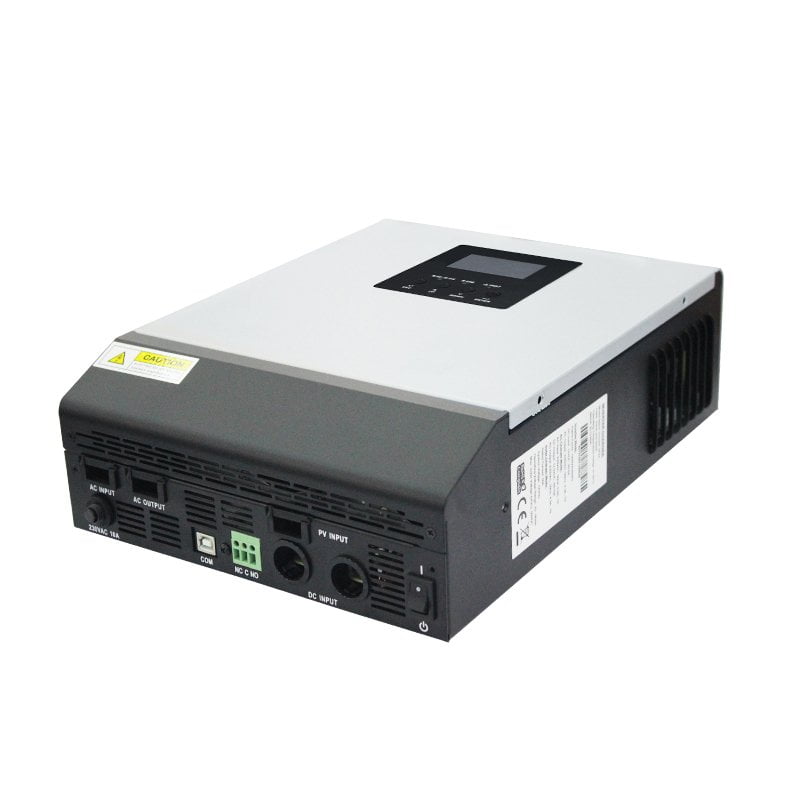

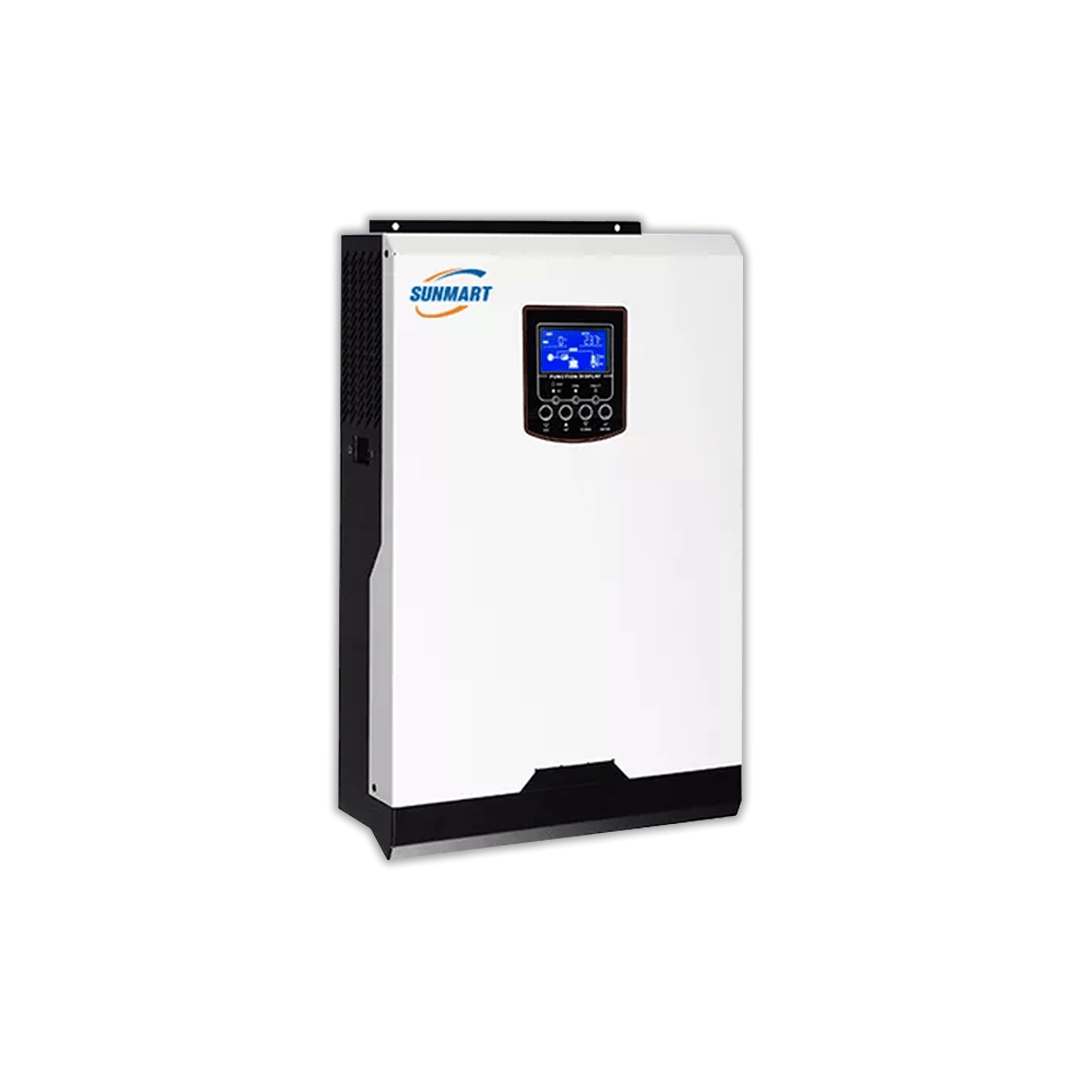

The Solar Inverter Sunmart 3500W High Frequency Off Grid provided in Lebanon by Smart Security is the best way to safely charge your batteries and use your electric devices using solar panels.
First, this inverter offers a high-efficiency pure sine wave which will allow you to use your AC devices safely.
Furthermore, it has a wide PV input range as well as an intelligent three-stage AC charger.
Additionally, it gives double the amount of continuous power for about five seconds when attached to motor loads.
Moreover, this solar inverter offers an intelligent functionality that enables utility and solar input prioritization.
Likewise, it is able to work in the most challenging environment during the bitter cold and scorching heat.
Besides, you can configure the system quickly and easily after mounting it to the wall.
Features of the Solar Inverter Sunmart 3500W High Frequency Off Grid:
- Pure sine wave inverter
- Built-in PWM solar charge controller
- Selectable input voltage range and frequency according to city power in your country
- Charging current is setable according to your battery type
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart charging system optimizes battery performance
- Cold start function
|RATED POWER||5300VA or about 3500W|
|Selectable Voltage Range||between 170 and 280 VAC For Personal Computers|
|between 90 and 280 VAC For Home Appliances|
|Frequency Range||The frequency range is between 50 Hz and 60 Hz with the Auto-sensing feature|
|AC Voltage Regulation (Batt. Mode)||230VAC ± 5%|
|Efficiency (Peak) PV to INV.||90%|
|Efficiency (Peak) Battery to INV.||93%|
|Transfer Time||10 ms For Personal Computers and 20 ms For Home Appliances|
|Waveform||Pure sine wave|
BATTERY & AC CHARGER
|Battery Voltage||24 VDC|
|Floating Charge Voltage||27 VDC|
|Overcharge Protection||33 VDC|
|Maximum Charging Current||60 A|
|Maximum PV Array Power||The maximum PV power is 5000W|
|MPPT Range @ Operating Voltage||between 120 and 450 VDC|
|Maximum PV Array Open Circuit Voltage||500 VDC|
|Maximum Charging Current||100A|
Finally, Buying this Solar inverter is the best way to have a steady supply of electricity to your home all year round.
So call us today at Smart Security and allow our professional operators to help you make your house a beacon of light all year round.
